Scotchman Industries

50514-EC

Visit this product here: https://www.scotchman.com/ironworker/view/50514-ec

Description

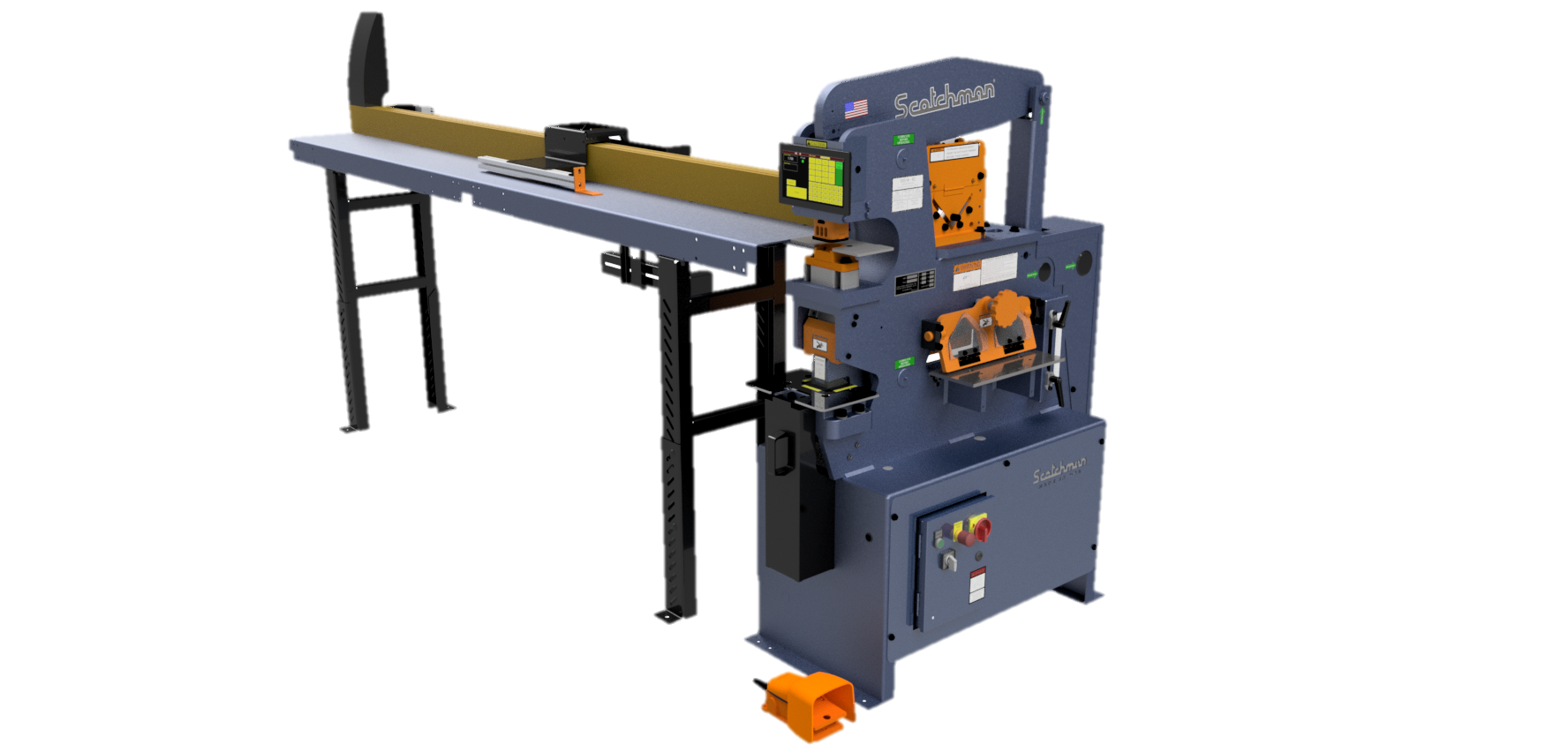

Increase ROI with this versatile & dependable 50-ton Ironworker.

With a 50-ton punching capacity, this single operator machine ironworker can punch a 1-1/4" hole in 1/2" metal or 13/16" hole through 3/4" mild steel plate; plus comes standard with an angle shear, 14 inch flat bar shear, and a built-in rectangle notcher. LED Work Lights are now standard to provide even more value! It's electric stroke control makes this machine very accurate for bending, punching, shearing and notching operations.

With its unique component tool table design, the 50514-EC has the ability to accept optional tooling, such as the 12" press brake, rod shear, square tube shear, picket tools, pipe notcher or custom tooling which greatly expands its fabricating capabilities. Because a variety of tools can be easily swapped in and out on this versatile workstation, you're able to fully customize it to fit your needs!

This American-made ironworker is built tough with quality materials and is backed by Scotchman’s industry leading 3-Year Warranty.

STD Features

  • Single Operator, 5 Stations
  • 50 Ton punch station
  • Keyed punch ram for safety
  • 2" Die holder
  • Punch nut with wrench & stripper
  • One round punch & die: max. diameter 1"
  • Adjustable electric stroke control with scale
  • Electric remote foot pedal
  • Angle shear
  • Flat bar shear with 4-way reversible blade
  • Rectangle notcher
  • Tool table work area

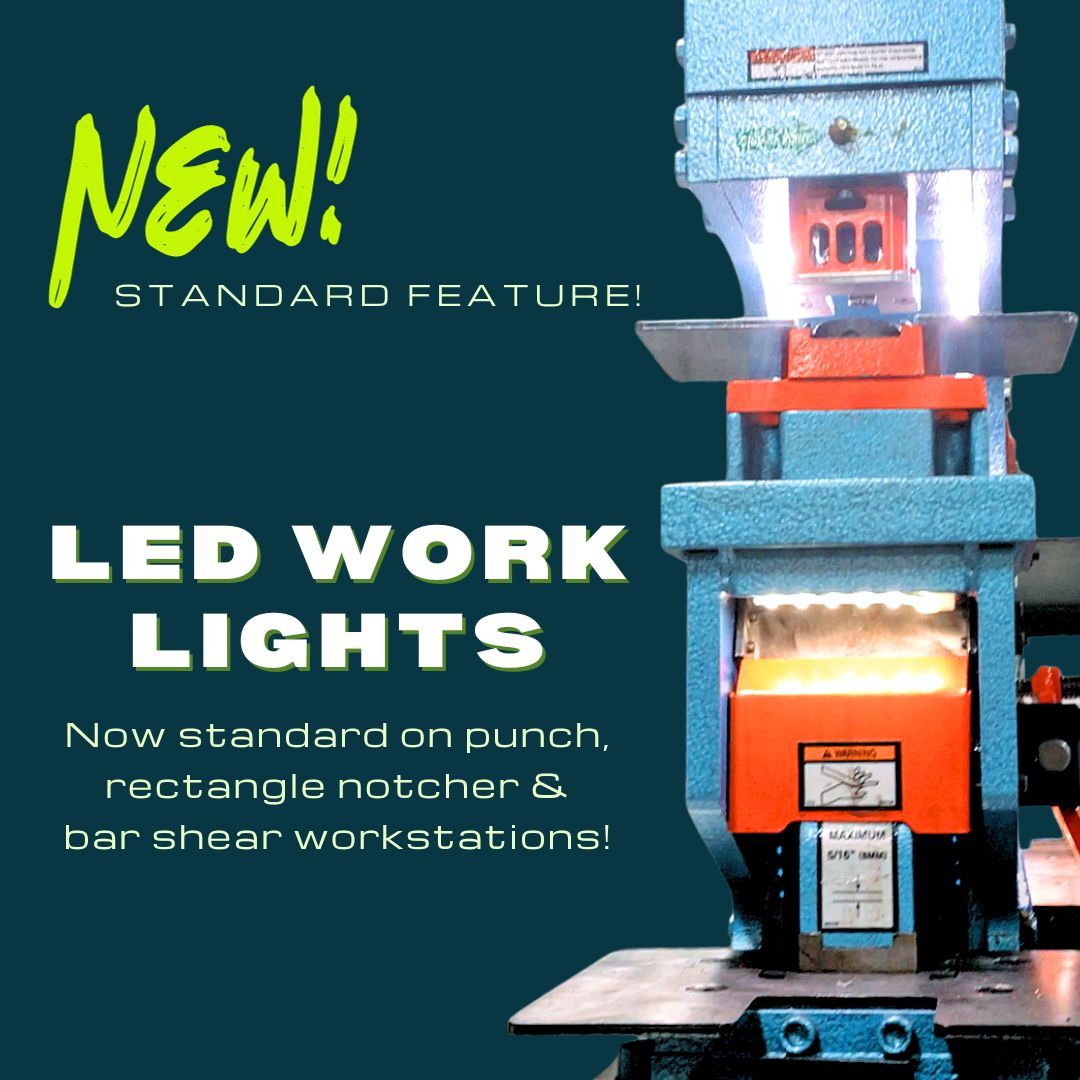

  • LED work lights now standard equipment!
  • Slug receptacle
  • Electrical box supplied with emergency palm button & lock-out tag-out accommodations
  • All guards necessary to comply with ANSI B11.5 safety standards
  • Forklift accommodations
  • Warranty: Three years on parts
  • Made in USA

Optional Tooling:

Snap Ring Removal-PF45, 50C & 50T
Pipe Notcher - All IW Models
8" Brake - PF45, 50C & 50T
Picket tool
Unistrut Shear
Jog Control - 50-tons
Weld Coupon Bender - 50-ton
Tool Table Ext - 50-C & 50-T
SPECIAL Custom Tooling
24" x 5' Conveyor with Angle Iron Support - 50C & 50T
Brake Table w/Scale & Squaring Arm - PF45, 50C & 50T
Laser Light - Bar Shear - 50C & 50T
Shear Table with Miter Fence - 50C & 50T
48" Back Gauge

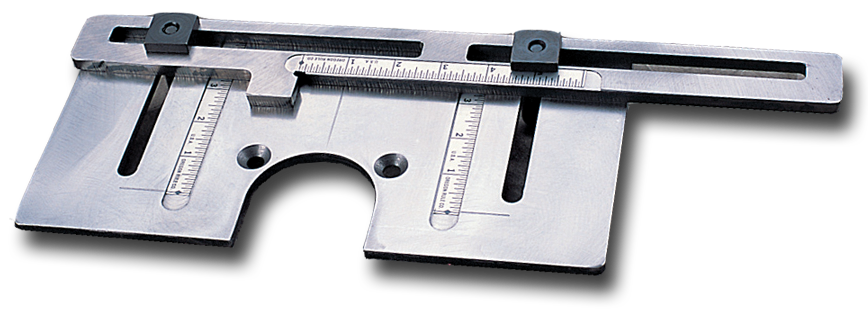

Punch Gauging Table w/Fence & Scale - 50C
Square Tube Shear - PF45, 50C, 50T
Rod Shear-5 cavity 45-50ton
90° V-Notcher - PF45, 50C & 50T
Angle Shear Miter Guide
Open End Brake - PF45, 50C & 50T
6" Brake - PF45, 50C & 50T
Econ P&D Package - PF45, 50C & 50T
Dlx P&D Pack - PF45, 50C, 50T
Stop/Pusher Measuring System for 50514-EC
Brake Length Gauge w/Scale - ALL Models
LED Lights - 50514-EC
