Scotchman Industries

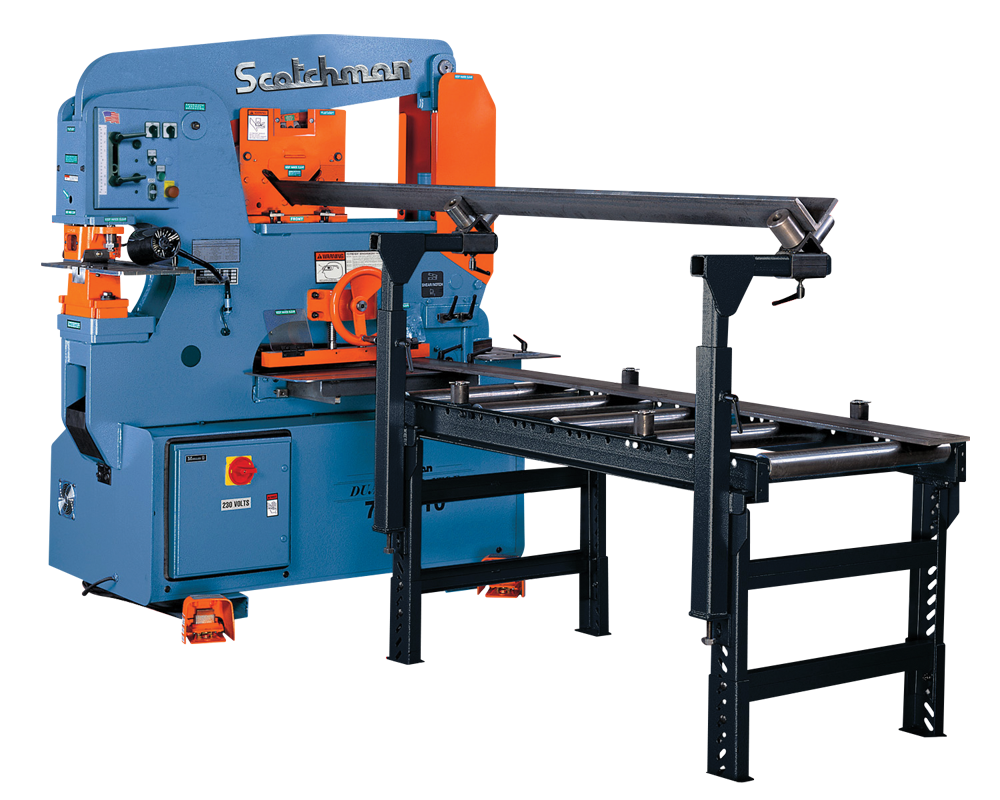

DO150
Visit this product here: https://www.scotchman.com/ironworker/view/do150
Description
When two operations are required to run simultaneously (like punching and shearing), a dual-operator ironworker is the perfect solution.
The DO150 is the largest ironworker built by Scotchman. With its 150-ton punching capacity and a 12" throat depth, this machine can punch a 2-1/2" hole in 3/4" thick mild steel or a 1-7/8" hole through 1 inch. This dual operator 150-ton machine has a tandem hydraulic pump system designed to allow two operators to use the machine at the same time guaranteeing that both operations maintain full hydraulic pressure and speed.
The DO 150/240-24M is made in America with many standard features that include: 6" x 6" x 1/2" angle shear and a rectangular notcher that can notch 3" x 5-3/4" through 1/2" material. The 24" flat bar shear features a low rake angle and can shear up to 1" x 14" and 3/4" x 24" steel plate. This machine also accepts optional equipment such as press brakes, rod shear, tube shear, picket tool, as well as custom-built tooling. The versatility of a Scotchman ironworker is unrivalled as our machine's design allows for additional tooling to be quickly swapped in and out of the tool table workstation which allows you to easily customize this machine to fit your needs!
This American-made ironworker is built tough and utilizes a hydraulic system with electric valves & remote foot pedals for ease of use, an adjustable electric stroke control with scale, and is backed by Scotchman’s industry leading 3-Year Warranty and lifetime customer support!
STD Features
- Dual Operator, 5 Stations
- Dual operator allows for two operators to work at the same time at full capacity
- 150 Ton punch station
- Keyed punch ram for safety
- Punch gauging table with fence and scale
- Die holder complete with 2" die insert
- Punch nut with wrench & stripper
- Adjustable swing-away stripper
- One round punch & die: max. diameter 1-1/4"
- LED work lights now standard equipment!
- Jog control
- Two adjustable electric stroke controls with scale
- Two electric remote foot pedals
- Tandem Hydraulic Pump
- Two valves
- Angle shear
- Rectangle notcher with table, scale and guides
- Flat bar shear with sabre blade
- Shear table with miter fence
- Tool table work area
- Slug receptacles
- Electrical box supplied with emergency palm button and lock-out tag-out accommodations
- All guards necessary to comply with ANSI B11.5 safety standards
- Forklift accommodations
- Warranty: Three years on parts
- Made in USA
