45 Ton Ironworker

The Scotchman Porta Fab 45 ironworker is the perfect choice for the fabricator on-the-go!

Porta Fab 45

Select Option

Description
Standard Features
Capacities & Specs

It's portable, versatile, and designed for in-plant or on-the-job operation!

With a 45-ton punching capacity, this ironworker can punch 1-1/8" hole through 1/2" mild steel and runs on 110-volt power from your standard wall outlet or generator. A 3-in-1 combination tool consisting of a flat bar shear, rod shear, and an angle shear comes standard and is located in our unique tool table area. This versatile workstation allows additional tooling to be easily swapped in and out so you can customize the machine to fit your needs.

This American-made ironworker is built tough and utilizes a hydraulic system with electric valve and remote foot pedal for ease of use, an adjustable electric stroke control with scale, and is backed by Scotchman’s industry leading 3-Year Warranty.

Single Operator, 4 Stations
Designed to be portable for job-site operation
45 Ton punch station
Keyed punch ram for safety
2" Die holder
Punch nut with wrench & stripper
One round punch & die: max. diameter 1"
Adjustable electric stroke control with scale
Electric remote foot pedal
Three-in-One Combination Tool: Angle Shear, Bar Shear & Rod Shear
Tool table work area
Slug receptacle
Machine stand with punch & die and tooling storage rack
All guards necessary to comply with ANSI B11.5 Safety Standards
Warranty: Three years on parts
Made in the USA

Punching Capacity	45 Ton (41 mt) 1-1/8" in 1/2" (28mm in 12mm)
Special Tooling	2-1/4" Max. Dia.	57 mm Max. Dia.
Throat Depth	4-1/4"	108 mm
Flat Bar Shear	6" Length 1/2" x 4" 3/8" x 6"	152 mm 12 x 102 mm 10 x 152 mm
Angle Shear 90 degree	3" x 3" x 5/16"	76 x 76 x 8 mm
Angle Shear 45 degree	2" x 2" x 1/4"	51 x 51 x 6 mm
Round Rod Shear	3/4"	19 mm
Brake 8"	25 Ton	23 mt
Brake 12"	20 Ton	18 mt
Open End Brake	Max. 1/4" x 3" [Flat or Angle Iron]	6 x 76 mm
Pipe Notcher Schedule 40	3/4", 1", 1-1/4", 1-1/2", 2"
Rectangle Notcher	2" x 1-3/4" x 1/4"	51 x 44 x 6 mm
90 degree V-Notcher	6" x 6" x 1/8"	152 x 152 x 3 mm
Rod Shear Round (max.) Square (max.)	5 Cavity - 1/4" to 1" 1 Cavity - 1/4" to 3/4"	6 to 25 mm 6 to 19 mm
Unistrut Shear	Samples Required
Square Tube Shear	1/2" to 1" 12 gauge	12 to 25 mm 0.105" / 2.7 mm
Picket Tool	1/2", 3/4" & 1" 16 gauge	12, 19, & 25 mm 0.06" / 1.5 mm
Weld Coupon Bender (max.)	2" wide x 3/8"	51 mm x 10 mm
Strokes per minute in light material	10 spm [Punch Station]	1/4" Stroke
Strokes per minute in heavy material	4 spm [Punch Station]	3/4" Stroke
Hydraulics	2,500 psi	172 bar
Motor Standard	2 hp 110v
Motor Optional	2 hp 220v, 1 ph	1.49kW
Dimensions	L: 38-1/4" W: 20" H: 39-1/4"	L: 97 cm W: 51 cm H: 100 cm
Shipping Weight (may vary)	710 lbs.	322 kg

Own It For As Low As

^$309 / month

lease-purchase financing available

REQUEST Pricing

Optional Tooling

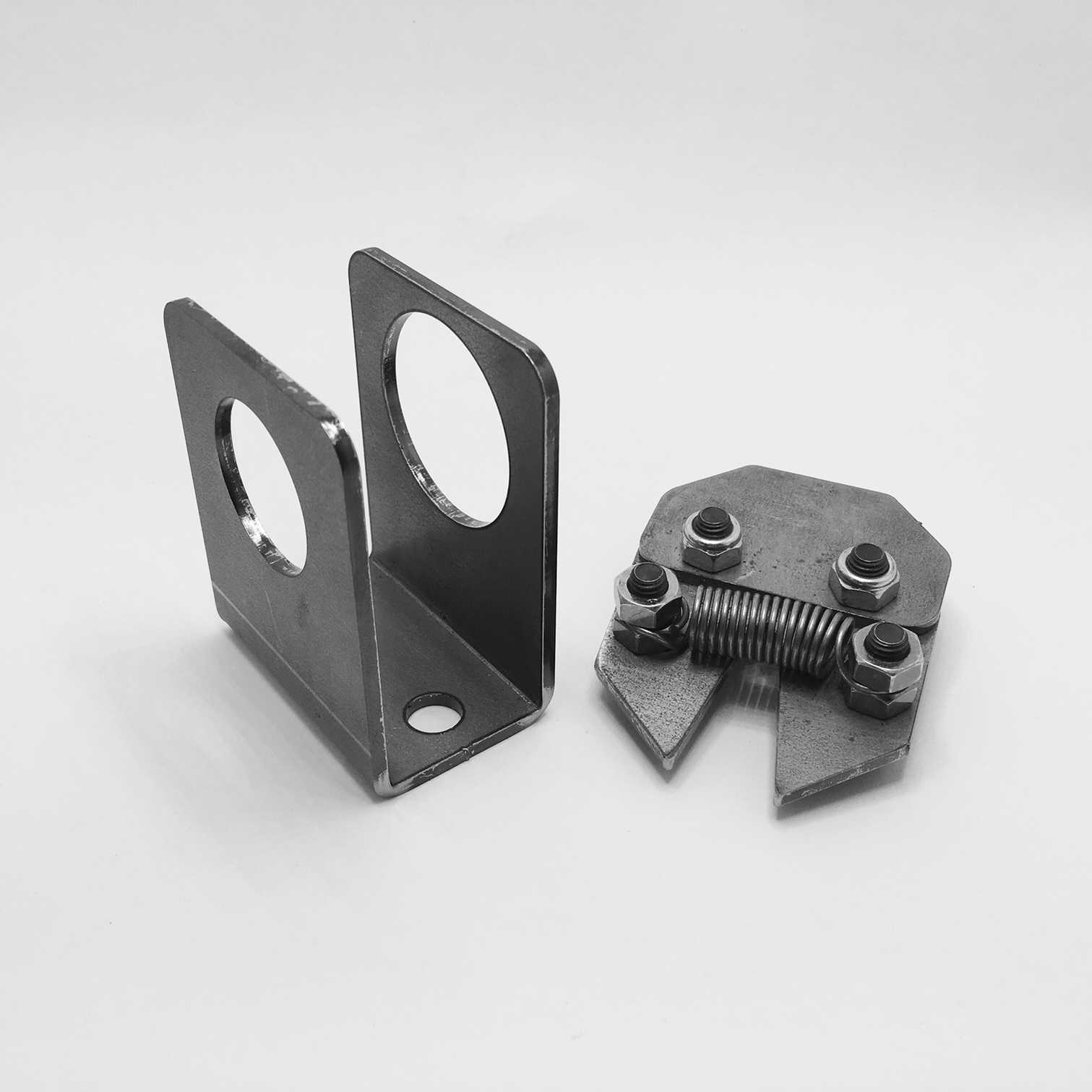

Snap Ring Removal Tool

Easily remove the snap rings on our punches with this tool. (For style #20 punches)

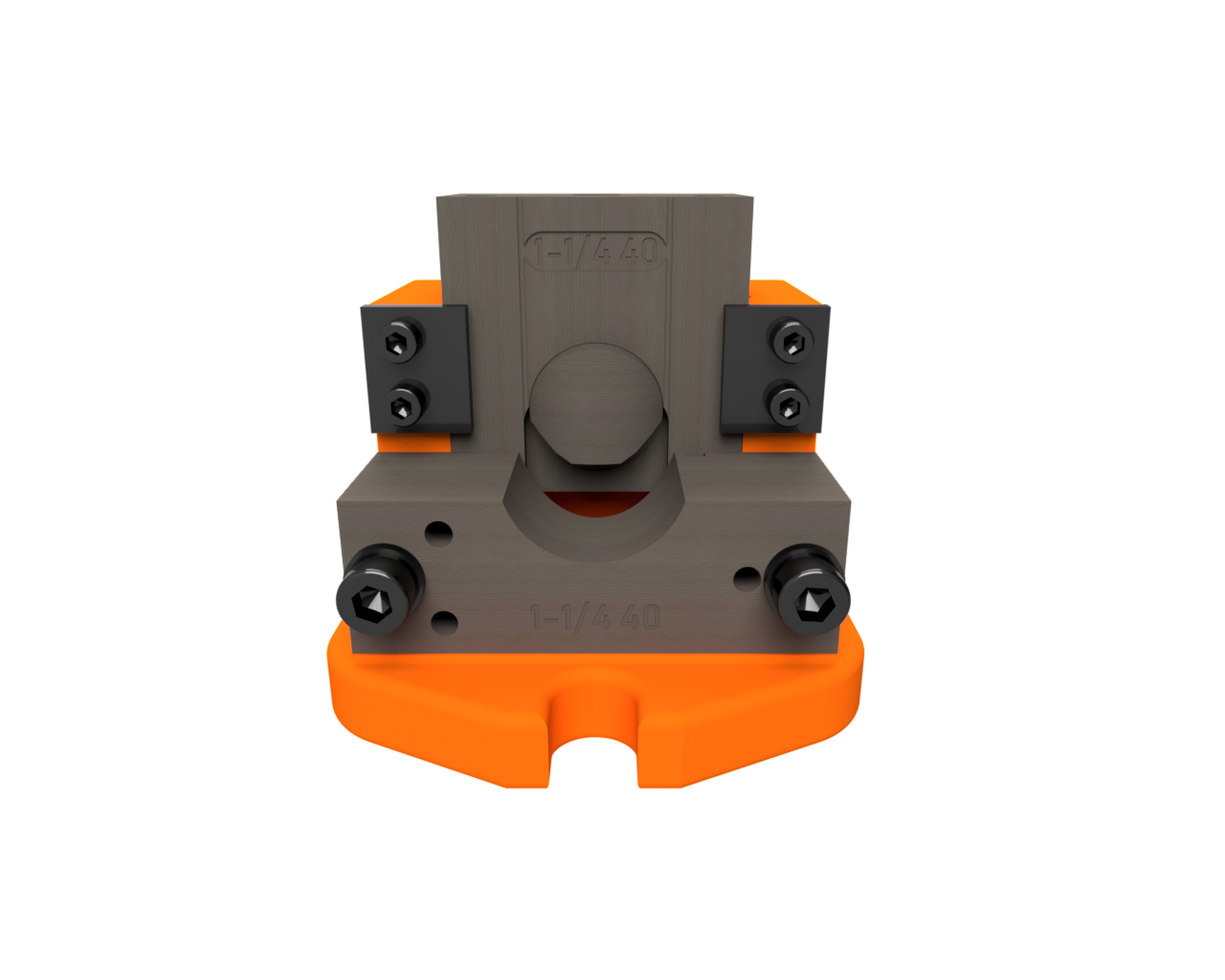

Pipe Notcher

Produce the perfect gap-free notch in seconds. Tool can be used in both the tool table or punch station on most models. Requires Schedule 40 pipe notcher die sets. Available standard sizes: 3/4", 1", 1-1/4", 1-1/2" or 2"

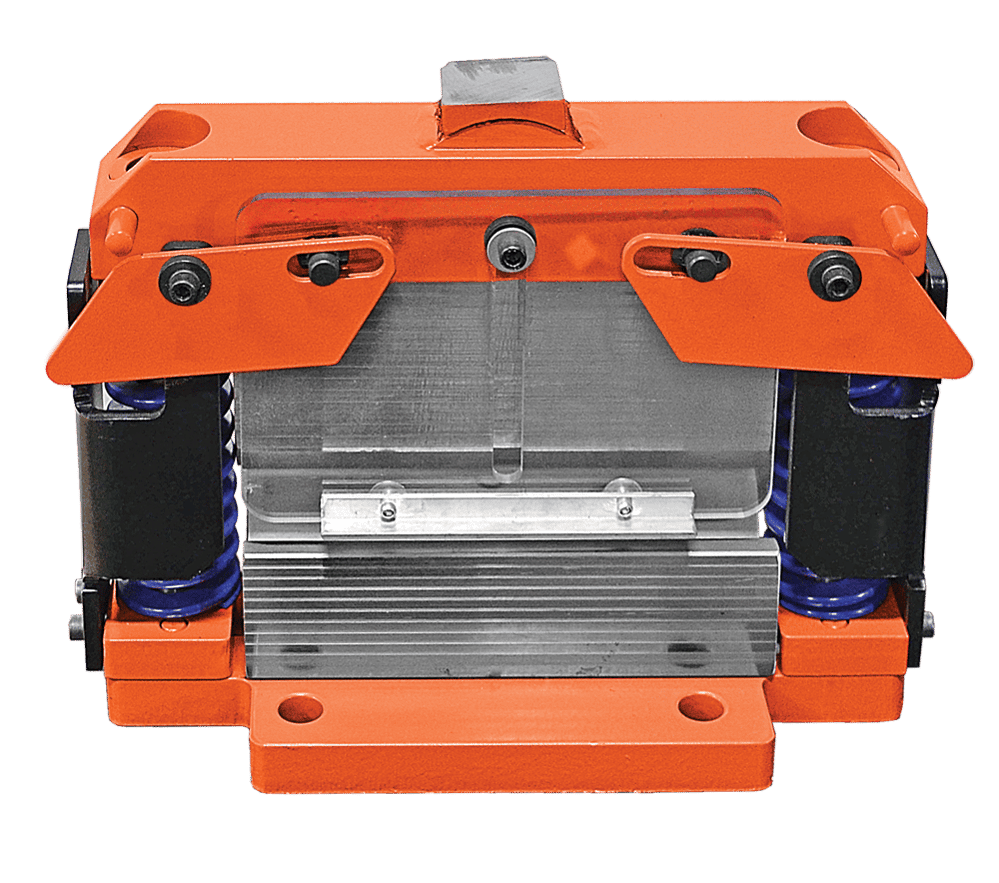

8” Brake

Delivers 25-tons of force to bend and shape metals up to 8 inches wide. 2" Lower V-die.

Weld Coupon Bender

This tool is designed to bend welded coupons to show a welding instructor and student if there are weak points in the weld.

Picket Tool

The picket punch tool is used to make pickets in ornamental iron. It flattens & trims ½”, ¾” or 1” thin gauge, hallow wall, square tubing. Separate dies needed for each size.

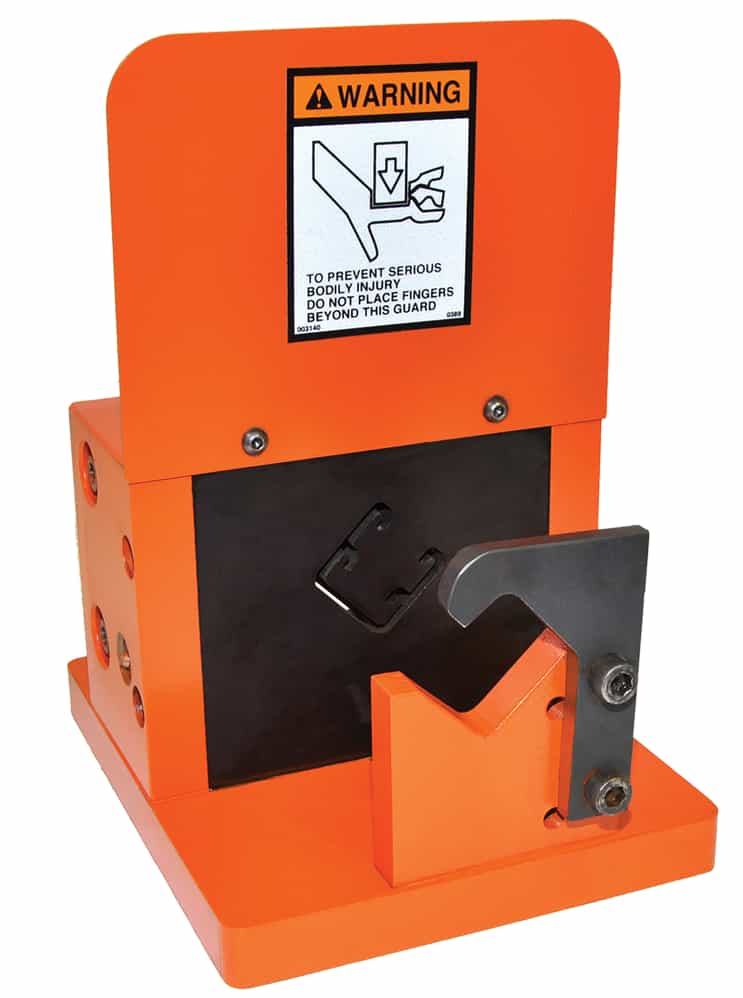

Unistrut Shear

Tool will shear Unistrut without distortion

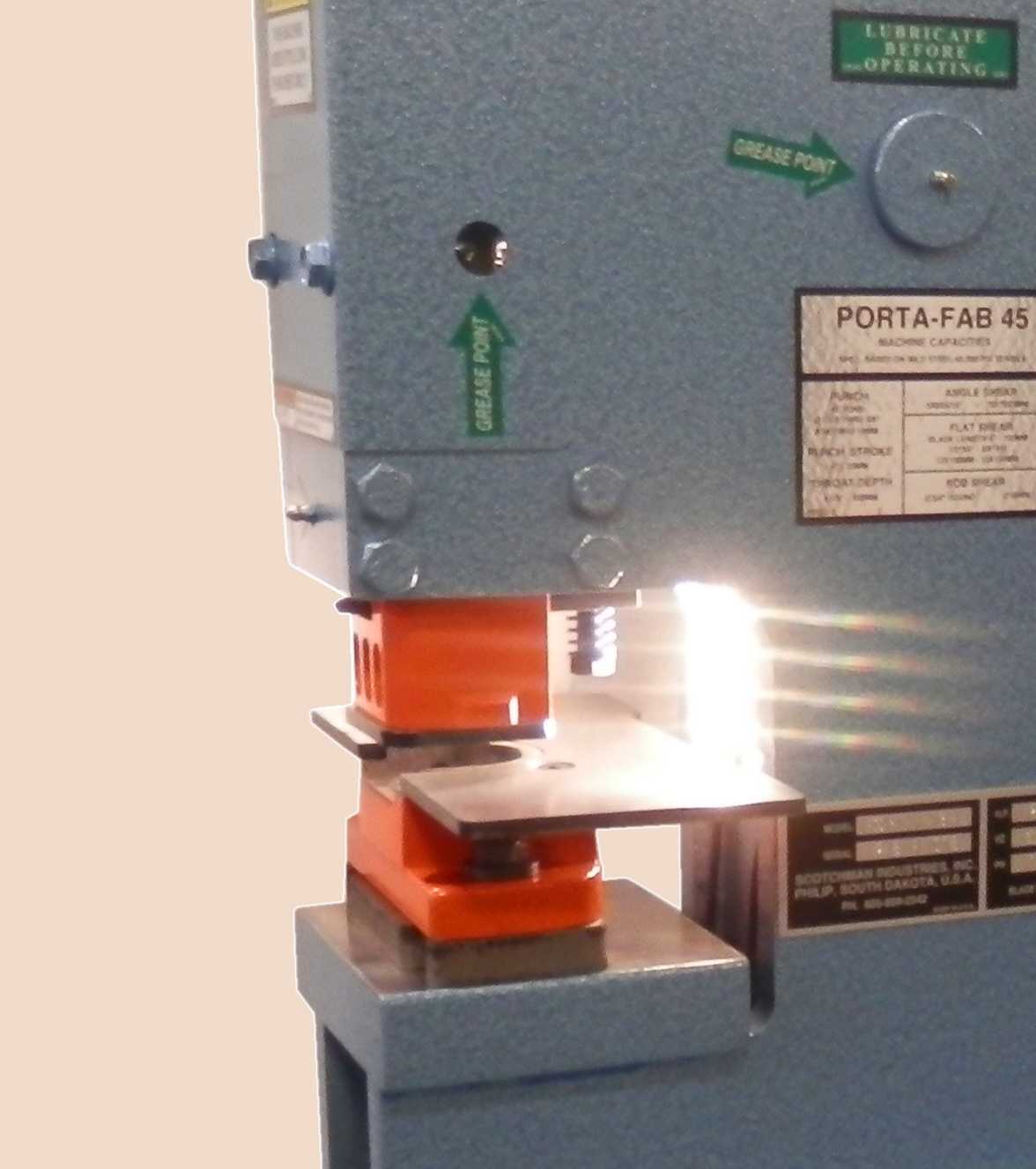

LED Lights

The LED Light Package for the punch station of the Porta-Fab 45 makes sure you can always see what you are working on. This is a factory installed option only.

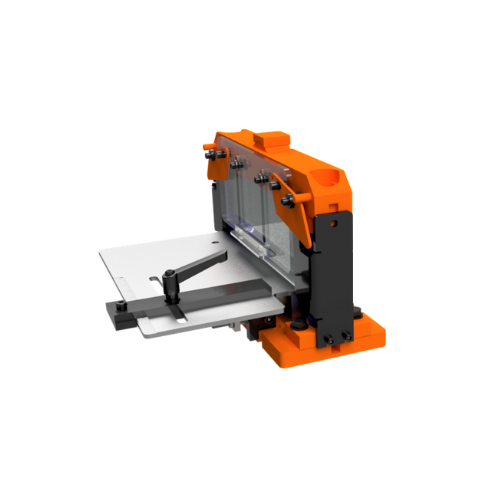

Brake Table with Scale and Squaring Arm

Adding this option to the 12" brake tool increases precision & accuracy. Length Gauge w/Scale is sold separately. (For 12" brake only)

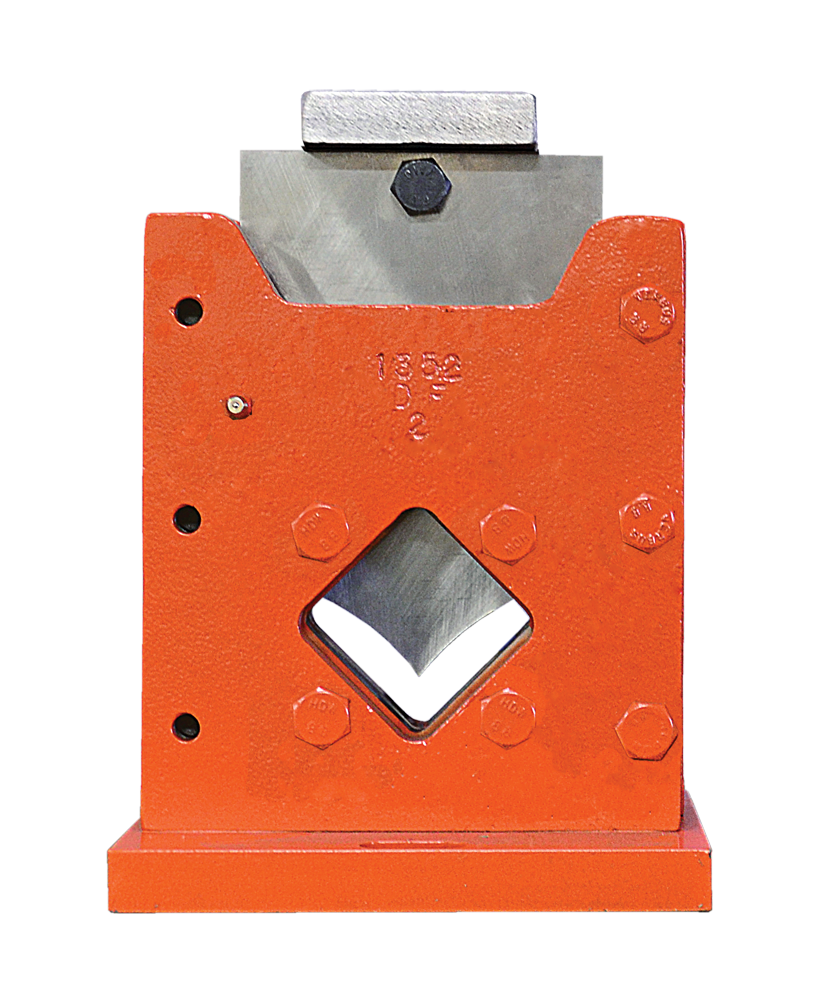

Square Tube Shear

Can shear 1/2" to 1" square tube, up to 14 gauge.

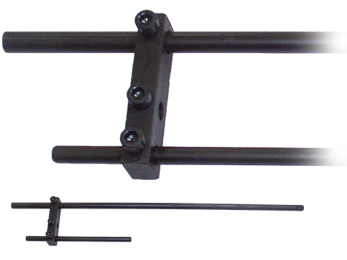

30" Material Stop

Back Gauge for 3-in-1 Tool

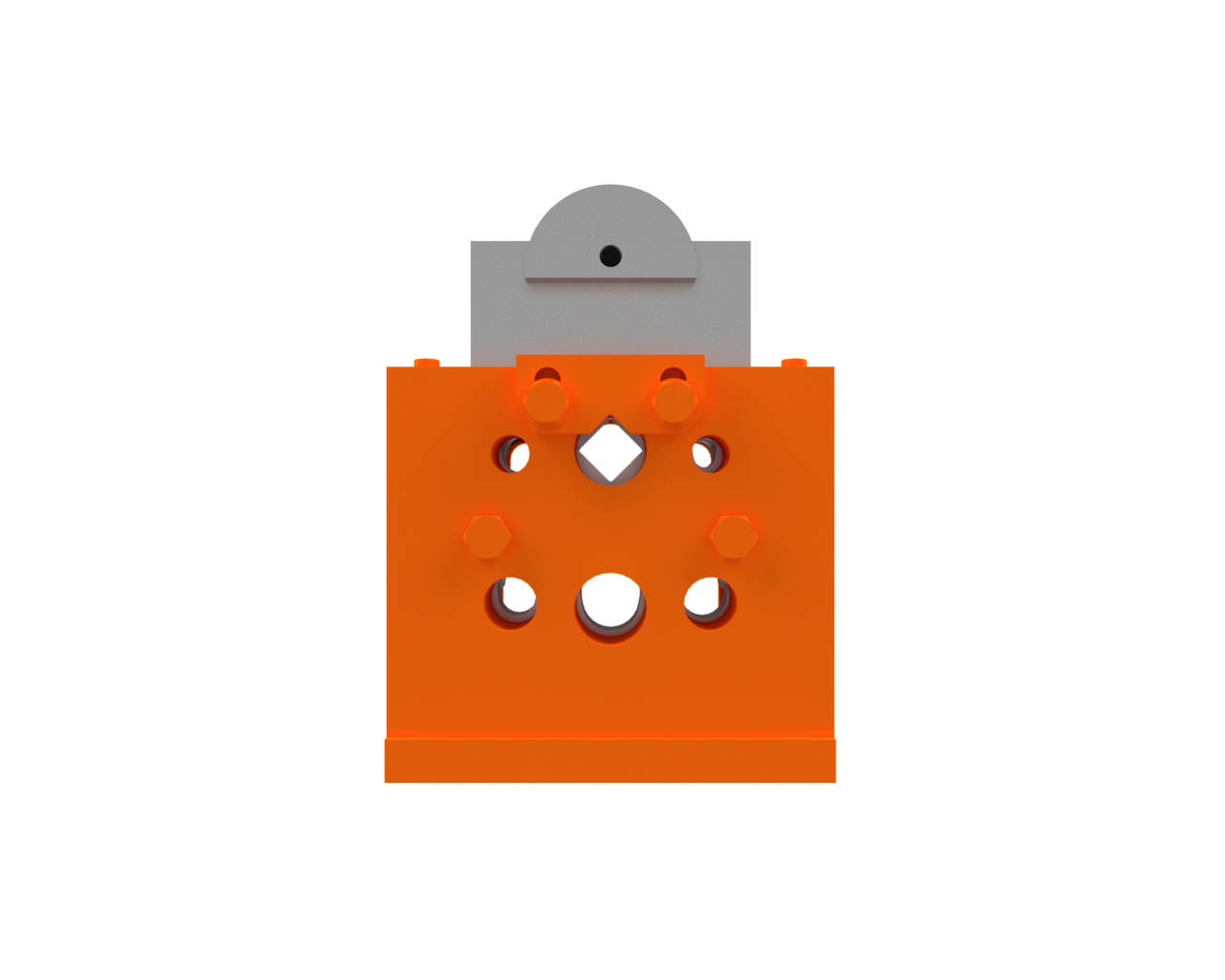

Rod Shear

This tool has 5 cavities for round rod: 1/4" to 1", and 1 cavity for square rod: 1/4" to 3/4"

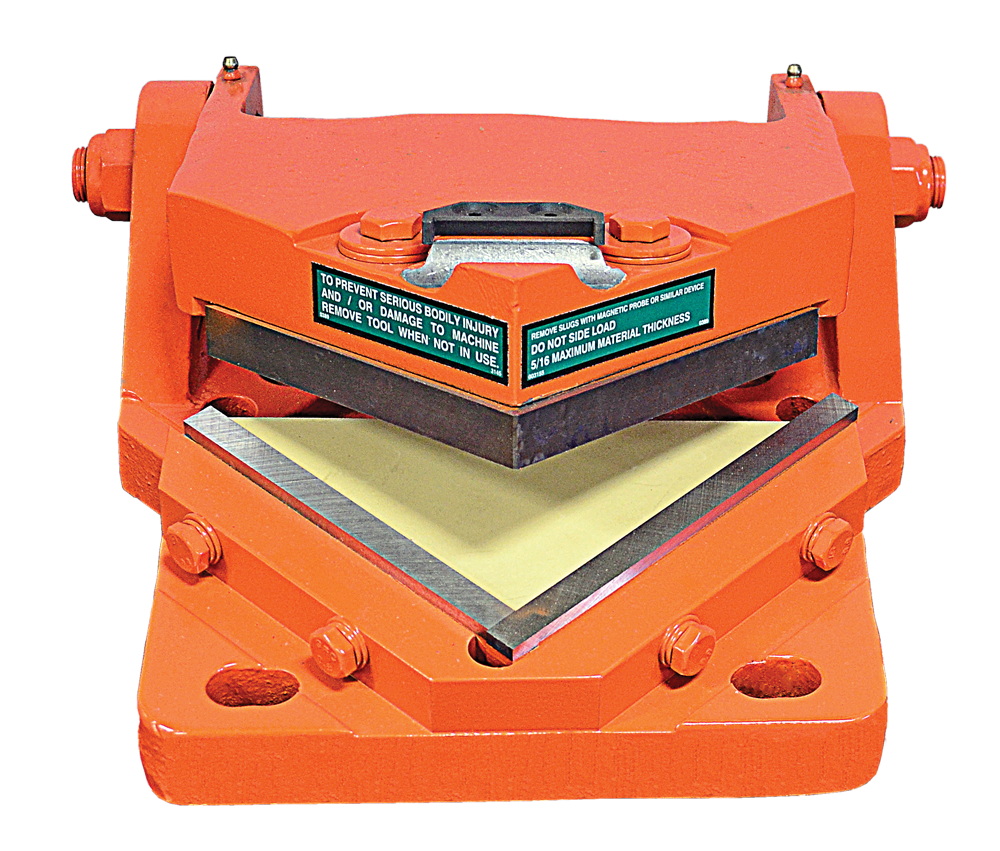

90° V-Notcher

Can cut a 6" x 6" V-notch in 1/8" thick material, and a 3" x 3" V-notch in 1/4" material. For tool table work station only.

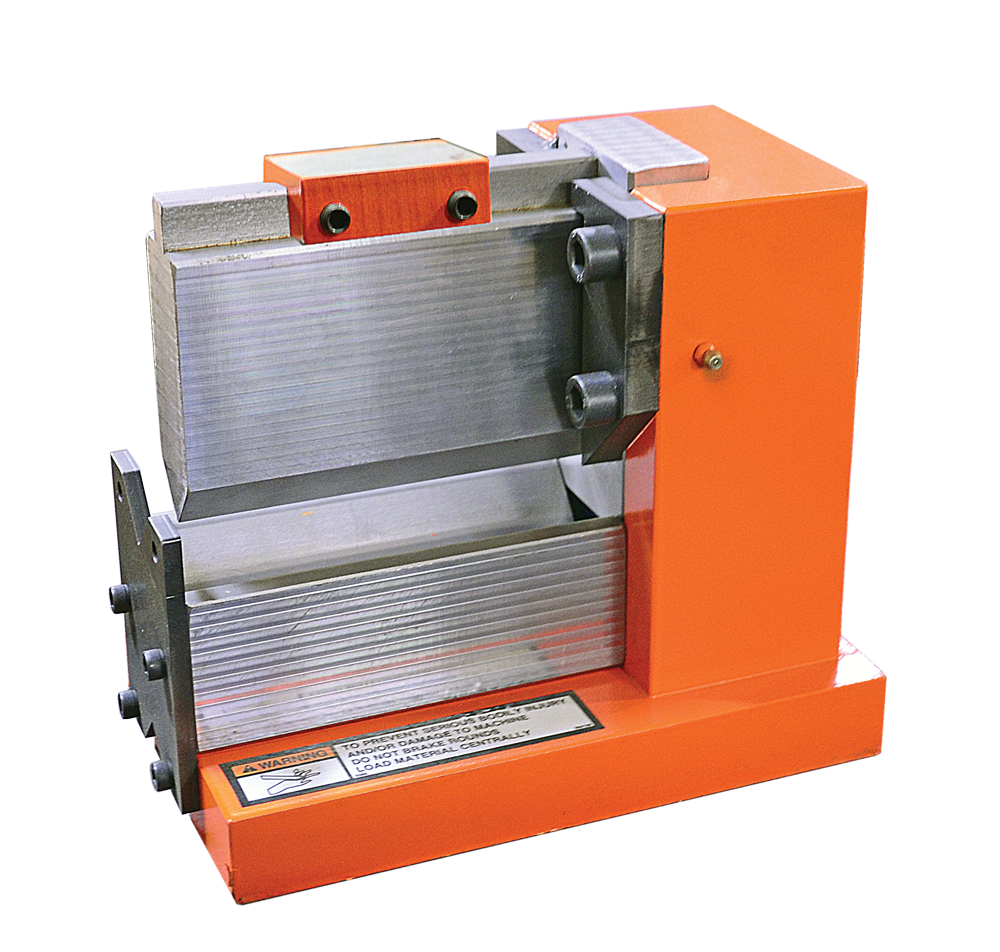

Open End Brake

Max 1/4" x 3" Flat or Angle Iron. *use on tool table station only

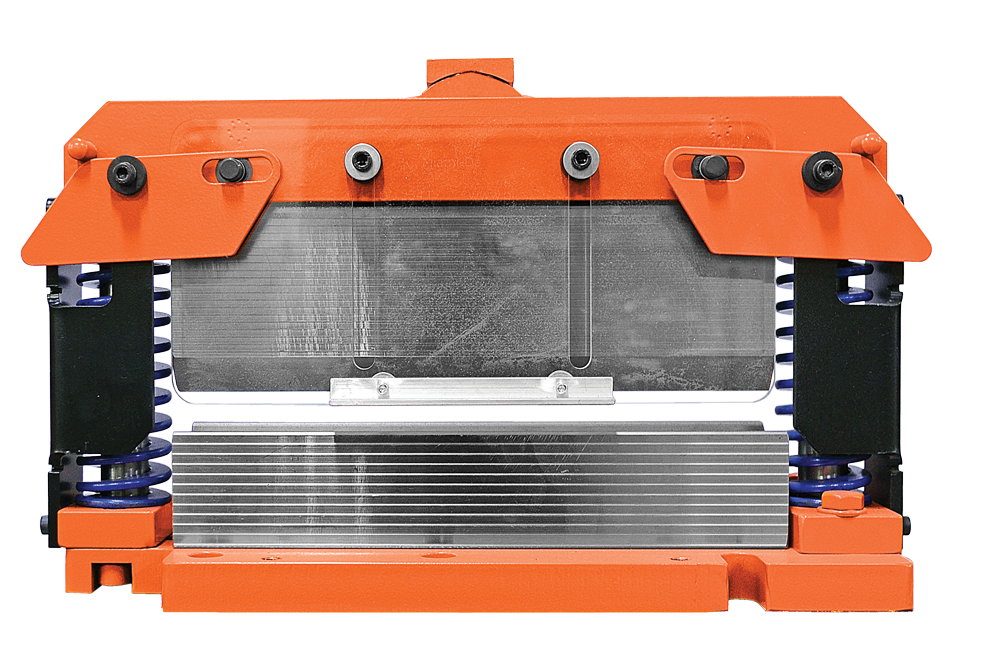

12" Brake

Delivers 25-tons of force to bend and shape metals up to 12 inches wide. 2" Lower V-die.

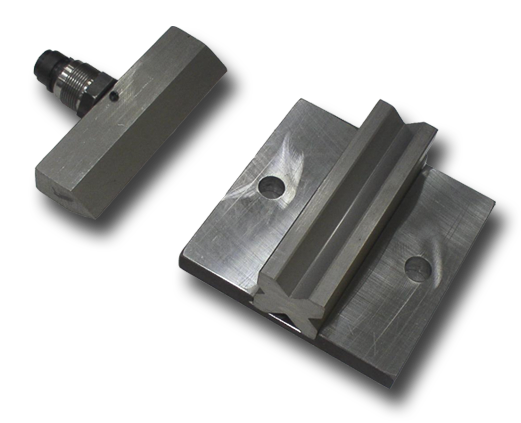

6" Brake

4-way lower V-die, 6 inch length.

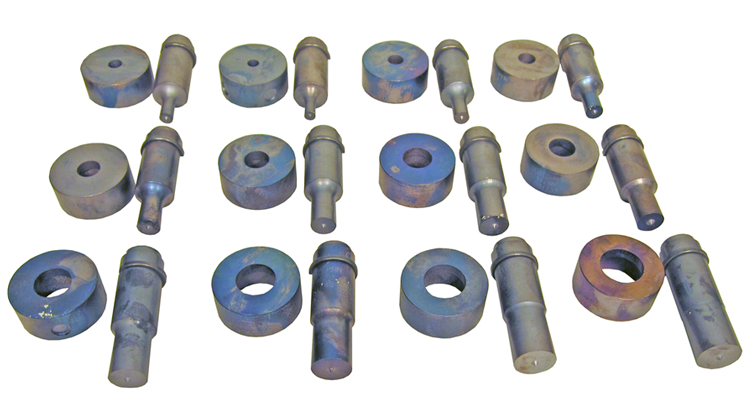

Economy Punch & Die Package

12 Round Punch & Die Sets, plus Snap Ring Removal Tool - Style #20 (available in 16th, 32nd OR metric sizes)

Deluxe Punch & Die Package

Punch & Die Variety Package, plus Snap Ring Removal Tool - Style #20. Includes: Round, Square & Oval sets

Brake Length Gauge with Scale

Brake Length Gauge with Scale attaches to an 8", 12", or 24" Brake.

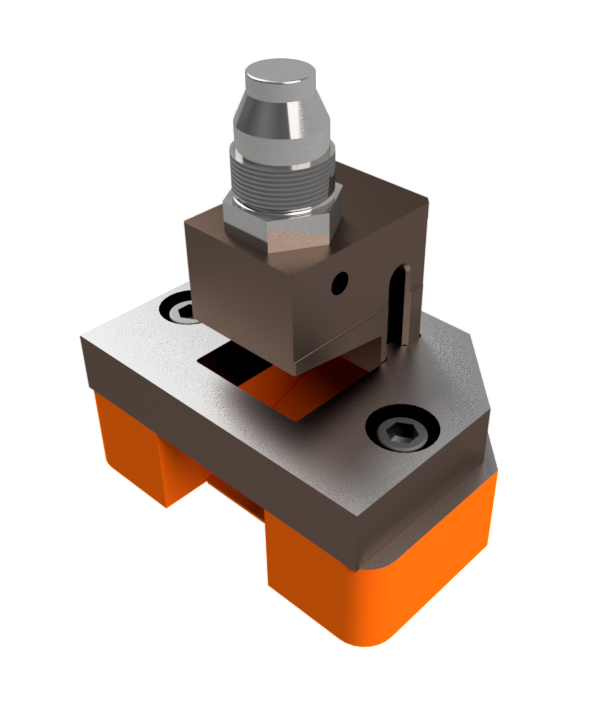

Rectangle Notcher

Convert the punch station into a rectangle notcher- 2" x 1-3/4" x 1/4" capacity

TEST

TEST

Custom tooling

This machine has saved me hours of drill time - we just feed, press, and we're finished! Quick shearing and bending. Setup is minimal and results are always good.

Jack Kitterman | Royal Truck Body

McClellan, CA

Not Sure?

Here are some factors to consider
when selecting an ironworker
that works for you.

We’re Here to Help!

Scotchman Industries

Porta Fab 45

Visit this product here: https://www.scotchman.com/ironworker/view/porta-fab-45

Description

It's portable, versatile, and designed for in-plant or on-the-job operation!

With a 45-ton punching capacity, this ironworker can punch 1-1/8" hole through 1/2" mild steel and runs on 110-volt power from your standard wall outlet or generator. A 3-in-1 combination tool consisting of a flat bar shear, rod shear, and an angle shear comes standard and is located in our unique tool table area. This versatile workstation allows additional tooling to be easily swapped in and out so you can customize the machine to fit your needs.

This American-made ironworker is built tough and utilizes a hydraulic system with electric valve and remote foot pedal for ease of use, an adjustable electric stroke control with scale, and is backed by Scotchman’s industry leading 3-Year Warranty.

STD Features

Single Operator, 4 Stations
Designed to be portable for job-site operation
45 Ton punch station
Keyed punch ram for safety
2" Die holder
Punch nut with wrench & stripper
One round punch & die: max. diameter 1"
Adjustable electric stroke control with scale
Electric remote foot pedal
Three-in-One Combination Tool: Angle Shear, Bar Shear & Rod Shear
Tool table work area
Slug receptacle
Machine stand with punch & die and tooling storage rack
All guards necessary to comply with ANSI B11.5 Safety Standards
Warranty: Three years on parts
Made in the USA

Optional Tooling:

Snap Ring Removal-PF45, 50C & 50T

Pipe Notcher - All IW Models

8" Brake - PF45, 50C & 50T

Weld Coupon Bender - PF45d

Picket tool

Unistrut Shear

LED Lights - PF45

Brake Table w/Scale & Squaring Arm - PF45, 50C & 50T

Square Tube Shear - PF45, 50C, 50T

30" Material Stop -PF45

Rod Shear-5 cavity 45-50ton

90° V-Notcher - PF45, 50C & 50T

Open End Brake - PF45, 50C & 50T

12" Brake - PF45, 50C & 50T

6" Brake - PF45, 50C & 50T

Econ P&D Package - PF45, 50C & 50T

Dlx P&D Pack - PF45, 50C, 50T

Brake Length Gauge w/Scale - ALL Models

Rectangle Notcher - PF45

TEST

Capacities & Specs

Punching Capacity	45 Ton (41 mt) 1-1/8" in 1/2" (28mm in 12mm)
Special Tooling	2-1/4" Max. Dia.	57 mm Max. Dia.
Throat Depth	4-1/4"	108 mm
Flat Bar Shear	6" Length 1/2" x 4" 3/8" x 6"	152 mm 12 x 102 mm 10 x 152 mm
Angle Shear 90 degree	3" x 3" x 5/16"	76 x 76 x 8 mm
Angle Shear 45 degree	2" x 2" x 1/4"	51 x 51 x 6 mm
Round Rod Shear	3/4"	19 mm
Brake 8"	25 Ton	23 mt
Brake 12"	20 Ton	18 mt
Open End Brake	Max. 1/4" x 3" [Flat or Angle Iron]	6 x 76 mm
Pipe Notcher Schedule 40	3/4", 1", 1-1/4", 1-1/2", 2"
Rectangle Notcher	2" x 1-3/4" x 1/4"	51 x 44 x 6 mm
90 degree V-Notcher	6" x 6" x 1/8"	152 x 152 x 3 mm
Rod Shear Round (max.) Square (max.)	5 Cavity - 1/4" to 1" 1 Cavity - 1/4" to 3/4"	6 to 25 mm 6 to 19 mm
Unistrut Shear	Samples Required
Square Tube Shear	1/2" to 1" 12 gauge	12 to 25 mm 0.105" / 2.7 mm
Picket Tool	1/2", 3/4" & 1" 16 gauge	12, 19, & 25 mm 0.06" / 1.5 mm
Weld Coupon Bender (max.)	2" wide x 3/8"	51 mm x 10 mm
Strokes per minute in light material	10 spm [Punch Station]	1/4" Stroke
Strokes per minute in heavy material	4 spm [Punch Station]	3/4" Stroke
Hydraulics	2,500 psi	172 bar
Motor Standard	2 hp 110v
Motor Optional	2 hp 220v, 1 ph	1.49kW
Dimensions	L: 38-1/4" W: 20" H: 39-1/4"	L: 97 cm W: 51 cm H: 100 cm
Shipping Weight (may vary)	710 lbs.	322 kg
