Programmable Length Stop or Material Pusher

This programmable measuring system eliminates operator error and is easily programmed to measure length or has the ability to push material to a desired length. Simply enter a part length and the stop will advance to that position quickly and accurately. This Stop/Pusher System can move one length at a time or be programmed with a series of lengths & quantities for faster operation.

Watch Video

Stop/Pusher System

Select Option

Description
Standard Features
Capacities & Specs

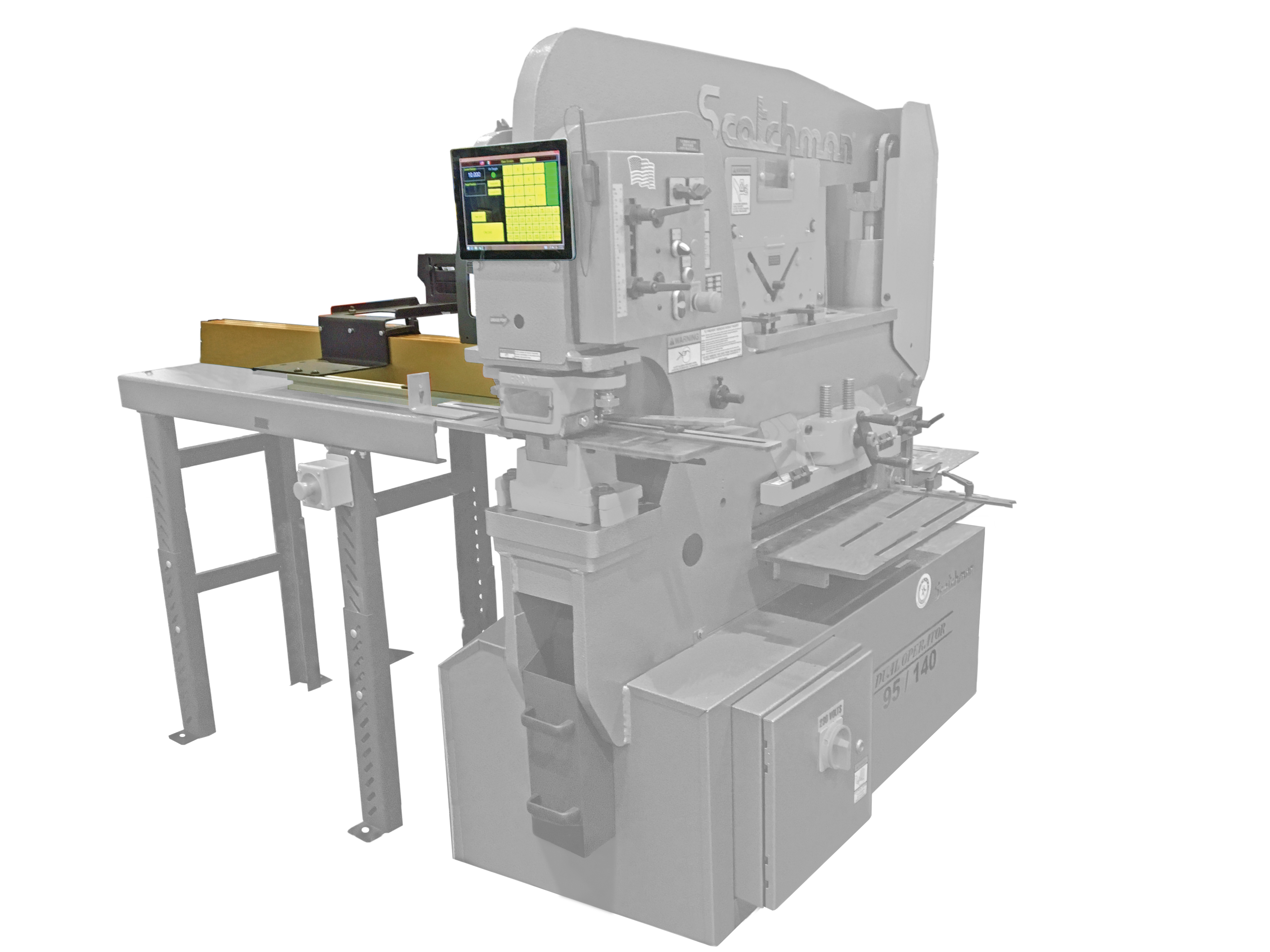

The RG Stop/Pusher System can be used as a "go to" stop or as a semi-automatic push feed system. It uses Windows-based technology with touch screen controls. The system can be mounted to feed left to right OR right to left. Available in lengths from 8' to 30'. The Stop/Pusher system can be paired with the punch stations of the Scotchman Ironworkers and Scotchman Cold Saws.

Programmable length stop or material pusher
Windows® touchscreen technology
Works in inches, fractions, decimal or metric
Fraction keys work as the "go" key
Unlimited preset keys and list storage
Supports barcode operations and remote serial commands
Multi offset allows for multiple tool positions
Electronic zero-point calibration
Steel reinforced belt drive with adjustable drive speed of 1" to 25" per second
Warranty: One year on parts
Made in the USA

Lengths:	8' to 30' Working Lengths
Speed:	Adjustable 1" to 25" per second
Accuracy:	Positioner accuracy ±0.008"
Screen:	17" Windows® touchscreen
Storage:	Unlimited preset keys & list storage
Measurements:	Inches, Fractions, Decimals OR Metric
Language:	Multi-lingual
Feed Direction:	Mounts: left → right -OR- right → left (must specify)
Voltage:	120 VAC
Functions:	Auto Pusher Mode Batch Mode Incremental Mode Set Point Mode
