      Tooling for Ironworkers

      Ironworker Tools & Accessories

      Scotchman ironworkers and tooling are designed & engineered in the USA and built tough providing you the versatility, dependable performance and customer satisfaction you expect from Scotchman. Our ironworkers can utilize a variety of optional tools and accessories that can help you save both time and money.

      Punch & Dies

      Scotchman offers a full line of punches & dies for our Ironworkers. All shaped punches are keyed standard for safe & positive punch alignment.

      Shapes include round, round offset, metric, oval, square, corner turning, hexagon, picket, and trimming and cut-off.

      Scotchman Industries has hundreds of punches and dies available in-stock for every model. If you cannot find a product that meets your needs, we can design and manufacture a custom shape.

      Price Sheets

      To view a price list of in-stock punches & dies,
      select the pdf for your model below.

      Punch & Dies for:

      Porta Fab 45

      50514 EC

      5014 ET

      Older models:
      207, 314, 424, 314C6, 314T,
      4014C, 4014T, 4014CM, 4014TM,
      5014CM, 5014TM, 50514CM

      image 1-1
      #20 Price Sheet
      Punch & Dies for:

      6509

      9012

      12012

      FI 8510

      DO 8514

      DO 70

      DO 95

      DO 120

      DO 135

      DO 150

      Older models:
      5075, 6012, 7012, 7575, 9075, 2450,
      FI 5009, FI 5109, FI 6008, FI 8507,DO 100

      image 2
      image 3
      image 4
      image 5
      #40 Price Sheet

      How-To Videos

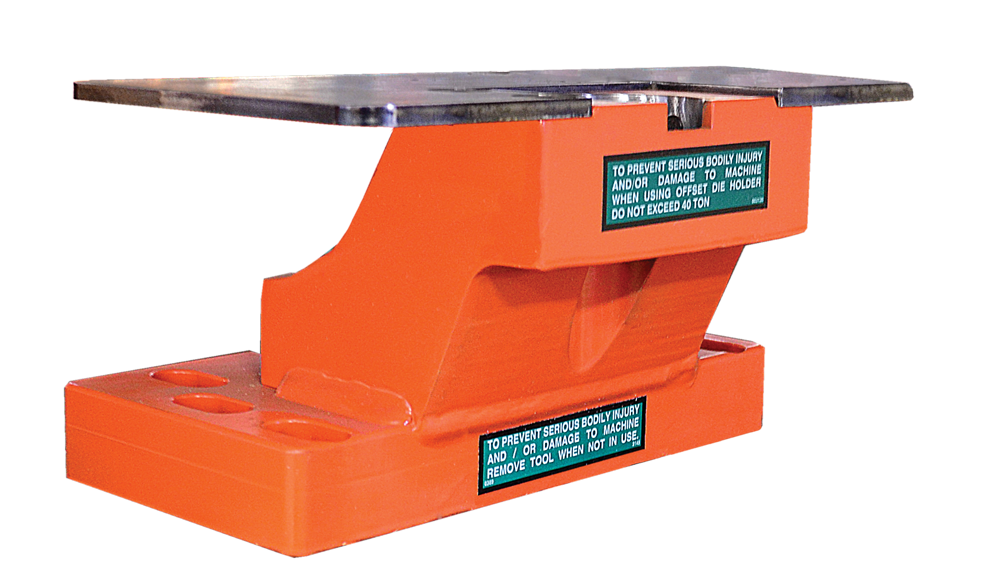

      STANDARD vs. OFFEST Die

      Learn the difference between a STANDARD and an OFFSET die for your Scotchman Ironworker. (Shown on a 50514-EC)
      YouTube

      Proper Installation of a STANDARD Punch & Die

      Learn How to properly install & align a punch & a STANDARD die on a Scotchman ironworker.
      NOTE: Proper alignment of your punch & die  is crucial to your safety and those around you. NEVER punch material thicker than the diameter of your punch.
      (Shown on model 50514-EC)
      YouTube

      Proper Installation of an Offset Punch & Die

      Learn how to properly install & align a punch with an OFFSET die on a Scotchman Ironworker.
      NOTE: Proper alignment of your punch & die  is crucial to your safety and those around you. NEVER punch material thicker than the diameter of your punch.
      (Shown on model 50514-EC)
      YouTube

      Snap Ring Removal Tool

      Learn the easiest way to remove a snap ring from a Scotchman punch. Tool is made for a #20 style punch & die and is available for purchase.
      YouTube

      ASSEMBLY OF A #40 PUNCH & DIE TOOL TABLE W/STORAGE DRAWER

      Step-by-step directions to aid in assembling your new punch & die storage drawer for Scotchman's #40 tool table extension.
      Follow along with paper manual for detailed instructions & images.
      YouTube

      Assembly of a #20 Punch & Die Tool Table w/Storage Drawer

      Step-by-step directions to aid in assembling your new punch & die storage drawer for Scotchman's #20 tool table extension.
      Follow along with paper manual for detailed instructions & images.
      YouTube

      Tooling & Accessories

      50514 EC tricked out ironworker at show

      Scotchman has a wide variety of in-stock tooling options and accessories to customize your ironworker to fit your needs. Plus, every piece of Scotchman tooling is designed & built at our factory.

      Porta Fab 45
      optional
      Snap Ring Removal Tool
      Easily remove the snap rings on our punches with this tool. (For style #20 punches)
      View
      optional
      Pipe Notcher
      Produce the perfect gap-free notch in seconds. Tool can be used in both the tool table or punch station on most models. Requires Schedule 40 pipe notcher die sets. Available standard sizes: 3/4", 1", 1-1/4", 1-1/2" or 2"
      View
      optional
      8” Brake
      Delivers 25-tons of force to bend and shape metals up to 8 inches wide. 2" Lower V-die.
      View
      optional

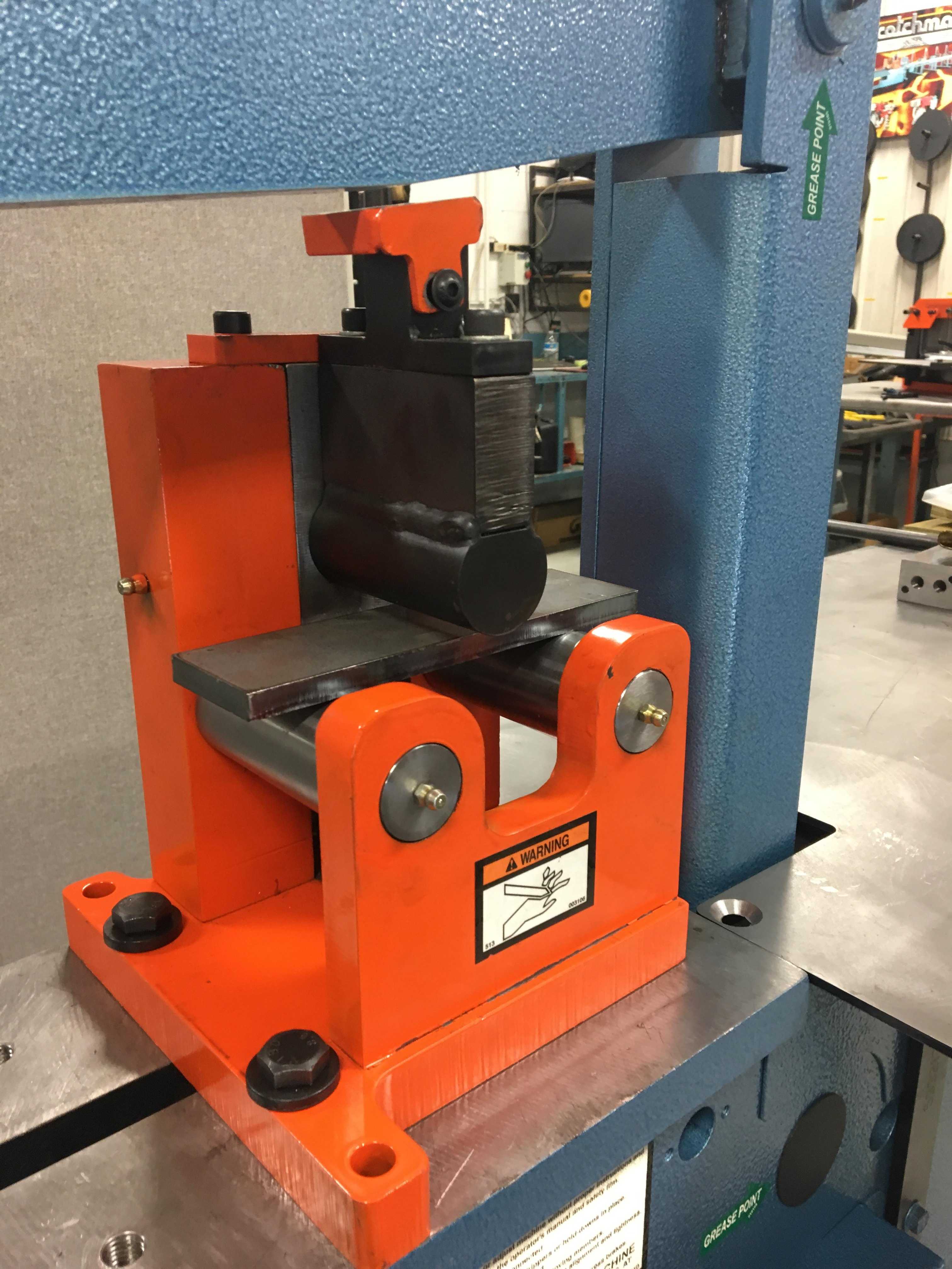

      Weld Coupon Bender
      This tool is designed to bend welded coupons to show a welding instructor and student if there are weak points in the weld.
      View
      optional
      Picket Tool
      The picket punch tool is used to make pickets in ornamental iron. It flattens & trims ½”, ¾” or 1” thin gauge, hallow wall, square tubing. Separate dies needed for each size.
      View
      optional
      Unistrut Shear
      Tool will shear Unistrut without distortion
      View
      optional

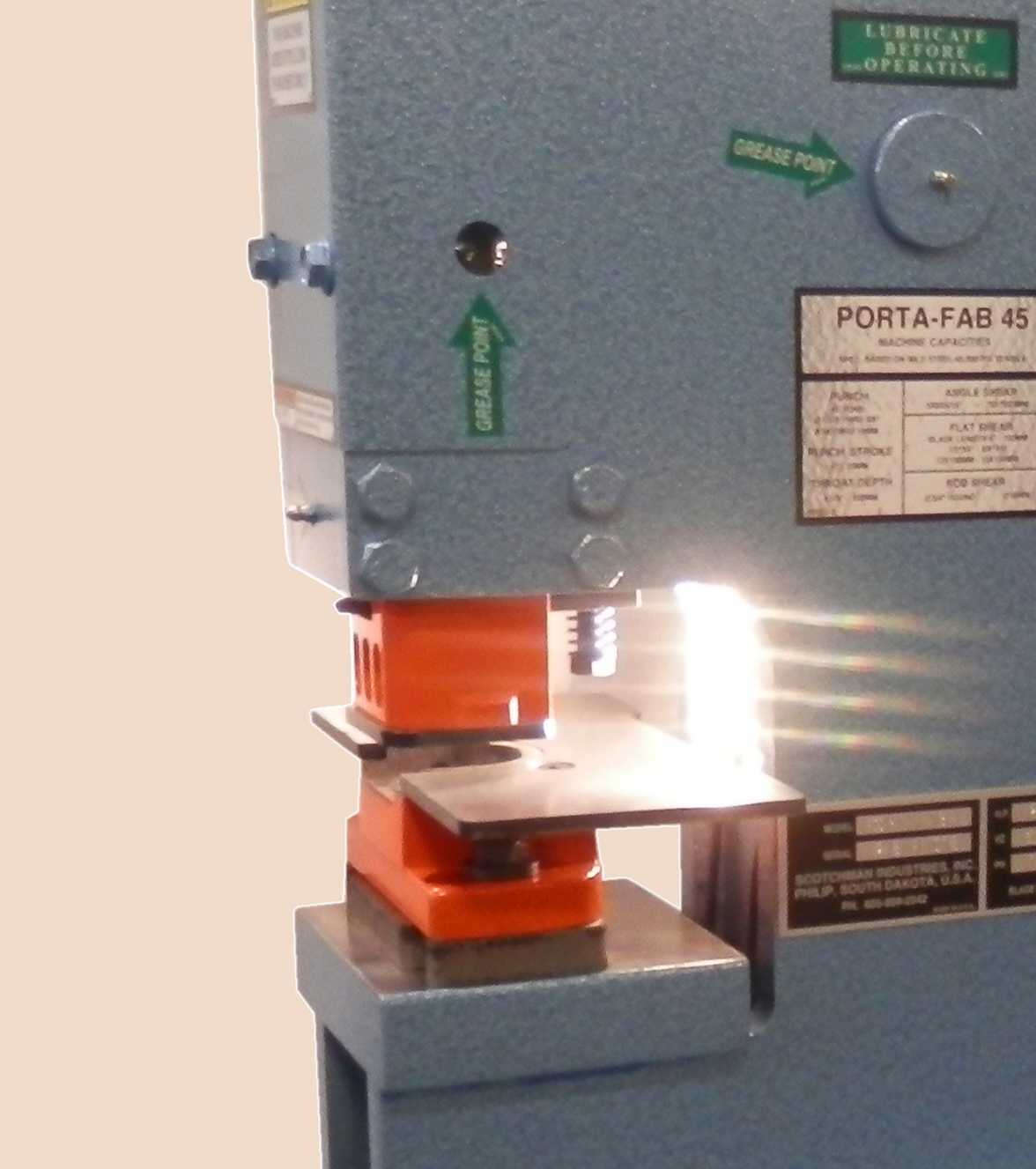

      LED Lights
      The LED Light Package for the punch station of the Porta-Fab 45 makes sure you can always see what you are working on. This is a factory installed option only.
      View
      optional
      Brake Table with Scale and Squaring Arm
      Adding this option to the 12" brake tool increases precision & accuracy. Length Gauge w/Scale is sold separately. (For 12" brake only)
      View
      optional
      Square Tube Shear
      Can shear 1/2" to 1" square tube, up to 14 gauge.
      View
      optional
      30" Material Stop
      Back Gauge for 3-in-1 Tool
      View
      optional
      Rod Shear
      This tool has 5 cavities for round rod: 1/4" to 1", and 1 cavity for square rod: 1/4" to 3/4"
      View
      optional
      90° V-Notcher
      Can cut a 6" x 6" V-notch in 1/8" thick material, and a 3" x 3" V-notch in 1/4" material. For tool table work station only.
      View
      optional
      Open End Brake
      Max 1/4" x 3" Flat or Angle Iron. *use on tool table station only
      View
      optional

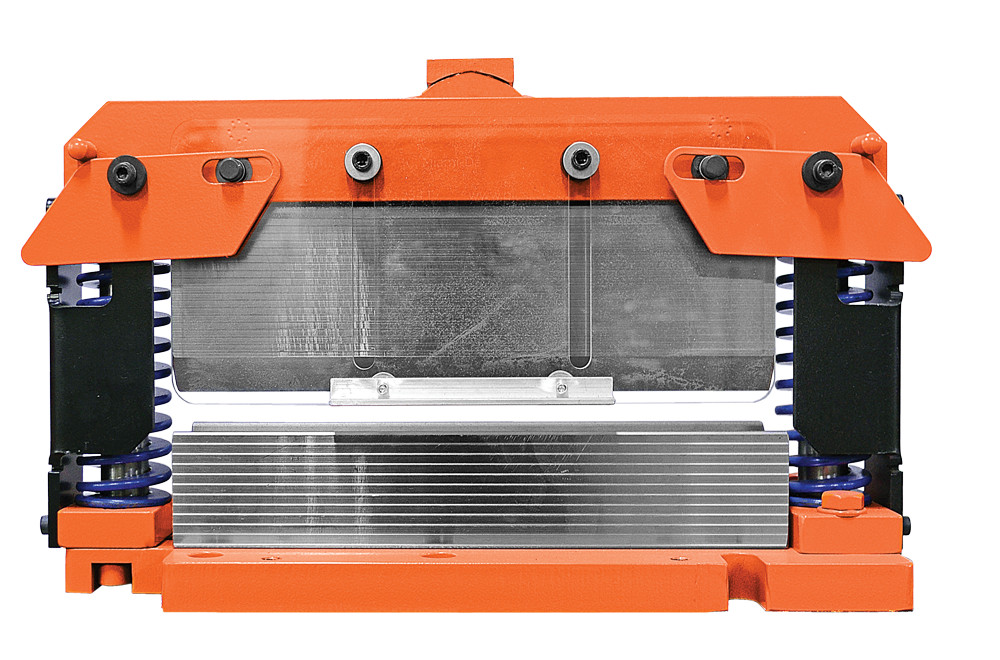

      12" Brake
      Delivers 25-tons of force to bend and shape metals up to 12 inches wide. 2" Lower V-die.
      View
      optional
      6" Brake
      4-way lower V-die, 6 inch length.
      View
      optional
      Economy Punch & Die Package
      12 Round Punch & Die Sets, plus Snap Ring Removal Tool - Style #20 (available in 16th, 32nd OR metric sizes)
      View
      optional
      Deluxe Punch & Die Package
      Punch & Die Variety Package, plus Snap Ring Removal Tool - Style #20. Includes: Round, Square & Oval sets
      View
      optional
      Brake Length Gauge with Scale
      Brake Length Gauge with Scale attaches to an 8", 12", or 24" Brake.
      View
      optional
      Rectangle Notcher
      Convert the punch station into a rectangle notcher- 2" x 1-3/4" x 1/4" capacity
      View
      optional
      TEST
      TEST
      View
      50514-EC
      optional
      Snap Ring Removal Tool
      Easily remove the snap rings on our punches with this tool. (For style #20 punches)
      View
      optional
      Pipe Notcher
      Produce the perfect gap-free notch in seconds. Tool can be used in both the tool table or punch station on most models. Requires Schedule 40 pipe notcher die sets. Available standard sizes: 3/4", 1", 1-1/4", 1-1/2" or 2"
      View
      optional
      8” Brake
      Delivers 25-tons of force to bend and shape metals up to 8 inches wide. 2" Lower V-die.
      View
      optional
      Picket Tool
      The picket punch tool is used to make pickets in ornamental iron. It flattens & trims ½”, ¾” or 1” thin gauge, hallow wall, square tubing. Separate dies needed for each size.
      View
      optional
      Unistrut Shear
      Tool will shear Unistrut without distortion
      View
      optional
      Jog Control
      This manual motor jog control allows the operator to 'jog' the machine to a certain position so specific adjustments or precise functions can be made.
      View
      optional
      Weld Coupon Bender
      This tool is designed to bend welded coupons to show a welding instructor and student if there are weak points in the weld.
      View
      optional

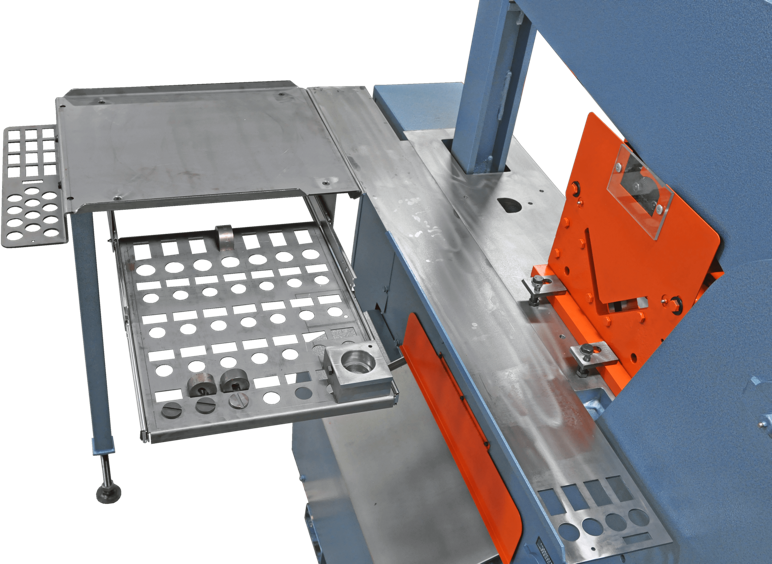

      Tool Table Extension With Punch & Die Storage Drawer
      Store your frequently tools here with quick sliding access to the tool table work station. *Punches & Dies sold separately.
      View
      optional
      Custom Built Tool examples
      Examples of applications that our custom tooling department can build. Contact us to design custom tools built to your unique specifications.
      View
      optional
      24" x 5' Conveyor with Angle Iron Support
      24" x 5' Conveyor with Angle Iron Support attached to 5014-ET
      View
      optional
      Brake Table with Scale and Squaring Arm
      Adding this option to the 12" brake tool increases precision & accuracy. Length Gauge w/Scale is sold separately. (For 12" brake only)
      View
      optional
      Laser Light - Bar Shear
      Easily see the cut mark & Increases precision at the bar shear.
      View
      optional
      Shear Table with Miter Fence
      Allows for accurate and repeatable cuts at the bar shear station.
      View
      optional
      48" Back Gauge
      Make consistent & repeatable cuts an the bar shear using a Back Gauge tool.  (Available in Manual or Electric versions)
      View
      optional
      Punch Gauging Table with Fence & Scale
      Allows for accurate and repeatable hole punching. Mounts to the punch station of a 50514-EC..
      View
      optional
      Square Tube Shear
      Can shear 1/2" to 1" square tube, up to 14 gauge.
      View
      optional
      Rod Shear
      This tool has 5 cavities for round rod: 1/4" to 1", and 1 cavity for square rod: 1/4" to 3/4"
      View
      optional
      90° V-Notcher
      Can cut a 6" x 6" V-notch in 1/8" thick material, and a 3" x 3" V-notch in 1/4" material. For tool table work station only.
      View
      optional
      Angle Shear Miter Guide
      45-degree & 22-degree miter guide for angle iron shear.
      View
      optional
      Open End Brake
      Max 1/4" x 3" Flat or Angle Iron. *use on tool table station only
      View
      optional
      12" Brake
      Delivers 25-tons of force to bend and shape metals up to 12 inches wide. 2" Lower V-die.
      View
      optional
      6" Brake
      4-way lower V-die, 6 inch length.
      View
      optional
      Economy Punch & Die Package
      12 Round Punch & Die Sets, plus Snap Ring Removal Tool - Style #20 (available in 16th, 32nd OR metric sizes)
      View
      optional
      Deluxe Punch & Die Package
      Punch & Die Variety Package, plus Snap Ring Removal Tool - Style #20. Includes: Round, Square & Oval sets
      View
      optional
      Stop/Pusher Measuring System for 50514-EC Ironworker
      Automate your punch station by adding a Programmable Stop/Pusher Material
      View
      optional
      Brake Length Gauge with Scale
      Brake Length Gauge with Scale attaches to an 8", 12", or 24" Brake.
      View
      optional
      LED Lights
      Now a standard feature! Our LED Work Lights for model 50514-EC ironworker is installed on the punch, shear & notcher stations to makes sure you can always see what you are working on.
      View
      5014-ET
      optional
      Snap Ring Removal Tool
      Easily remove the snap rings on our punches with this tool. (For style #20 punches)
      View
      optional
      Pipe Notcher
      Produce the perfect gap-free notch in seconds. Tool can be used in both the tool table or punch station on most models. Requires Schedule 40 pipe notcher die sets. Available standard sizes: 3/4", 1", 1-1/4", 1-1/2" or 2"
      View
      optional
      8” Brake
      Delivers 25-tons of force to bend and shape metals up to 8 inches wide. 2" Lower V-die.
      View
      optional
      Picket Tool
      The picket punch tool is used to make pickets in ornamental iron. It flattens & trims ½”, ¾” or 1” thin gauge, hallow wall, square tubing. Separate dies needed for each size.
      View
      optional
      Unistrut Shear
      Tool will shear Unistrut without distortion
      View
      optional
      Jog Control
      This manual motor jog control allows the operator to 'jog' the machine to a certain position so specific adjustments or precise functions can be made.
      View
      optional
      Weld Coupon Bender
      This tool is designed to bend welded coupons to show a welding instructor and student if there are weak points in the weld.
      View
      optional
      Tool Table Extension With Punch & Die Storage Drawer
      Store your frequently tools here with quick sliding access to the tool table work station. *Punches & Dies sold separately.
      View
      optional
      Custom Built Tool examples
      Examples of applications that our custom tooling department can build. Contact us to design custom tools built to your unique specifications.
      View
      optional
      24" x 5' Conveyor with Angle Iron Support
      24" x 5' Conveyor with Angle Iron Support attached to 5014-ET
      View
      optional
      Brake Table with Scale and Squaring Arm
      Adding this option to the 12" brake tool increases precision & accuracy. Length Gauge w/Scale is sold separately. (For 12" brake only)
      View
      optional
      Laser Light - Bar Shear
      Easily see the cut mark & Increases precision at the bar shear.
      View
      optional
      Shear Table with Miter Fence
      Allows for accurate and repeatable cuts at the bar shear station.
      View
      optional
      48" Back Gauge
      Make consistent & repeatable cuts an the bar shear using a Back Gauge tool.  (Available in Manual or Electric versions)
      View
      optional
      Punch Gauging Table with Fence & Scale
      Allows for accurate and repeatable hole punching. Mounts to the punch station of a 5014-ET.
      View
      optional
      Square Tube Shear
      Can shear 1/2" to 1" square tube, up to 14 gauge.
      View
      optional
      Rod Shear
      This tool has 5 cavities for round rod: 1/4" to 1", and 1 cavity for square rod: 1/4" to 3/4"
      View
      optional
      90° V-Notcher
      Can cut a 6" x 6" V-notch in 1/8" thick material, and a 3" x 3" V-notch in 1/4" material. For tool table work station only.
      View
      optional
      Angle Shear Miter Guide
      45-degree & 22-degree miter guide for angle iron shear.
      View
      optional
      Open End Brake
      Max 1/4" x 3" Flat or Angle Iron. *use on tool table station only
      View
      optional
      12" Brake
      Delivers 25-tons of force to bend and shape metals up to 12 inches wide. 2" Lower V-die.
      View
      optional
      6" Brake
      4-way lower V-die, 6 inch length.
      View
      optional
      Economy Punch & Die Package
      12 Round Punch & Die Sets, plus Snap Ring Removal Tool - Style #20 (available in 16th, 32nd OR metric sizes)
      View
      optional
      Deluxe Punch & Die Package
      Punch & Die Variety Package, plus Snap Ring Removal Tool - Style #20. Includes: Round, Square & Oval sets
      View
      optional
      Brake Length Gauge with Scale
      Brake Length Gauge with Scale attaches to an 8", 12", or 24" Brake.
      View
      optional
      LED Lights
      Now a standard feature! Our LED Work Lights for model 5014-ET ironworker are installed on the punch & shear stations to make sure you can always see what you are working on.
      View
      6509
      optional
      Rod Shear
      This tool has 9 cavities for round rod: 1/4" to 1-1/4", and 1 cavity for square rod: 1/4" to 1""
      View
      optional
      Pipe Notcher
      Produce the perfect gap-free notch in seconds. Tool can be used in both the tool table or punch station on most models. Requires Schedule 40 pipe notcher die sets. Available standard sizes: 3/4", 1", 1-1/4", 1-1/2" or 2"
      View
      optional
      Picket Tool
      The picket punch tool is used to make pickets in ornamental iron. It flattens & trims ½”, ¾” or 1” thin gauge, hallow wall, square tubing. Separate dies needed for each size.
      View
      optional
      Unistrut Shear
      Tool will shear Unistrut without distortion
      View
      optional
      Weld Coupon Bender
      This tool is designed to bend welded coupons to show a welding instructor and student if there are weak points in the weld.
      View
      optional
      Punch Table Extension
      Increase the work area on the punch station with this extension table.
      View
      optional
      Custom Built Tool examples
      Examples of applications that our custom tooling department can build. Contact us to design custom tools built to your unique specifications.
      View
      optional
      24" x 5' Conveyor with Angle Iron Support
      24" x 5' Conveyor with Angle Iron Support attached to DO70
      View
      optional
      Multi-Loc Punch Gauging Table
      Multi-Loc Punch Gauging Table comes in two sizes:36" & 85" Extensions. This unique measuring system allows you to set metal stops at various lengths to enable the maximization of raw stock without changing the set-up each time.
      View
      optional
      Brake Table with Scale & Squaring Arm
      Increase precision & accuracy while using the brake with this option. Length Gauge w/Scale is sold separately. (For 12" & 24” brakes)
      View
      optional
      Hydraulic Hold Down
      Hydraulic hold down for flat bar shear
      View
      optional
      Unequal Leg Angle Shear Blades
      Unequal Leg Blades for your angle shear. Available in 66°, 70°, 74° or 80°.
      View
      optional
      Offset Die Holder
      Offset Die Holder allows for punching in the flange of channel or I-beam. (Stripper required for 6509 & 9012 models)
      View
      optional
      Urethane Stripper
      Aids in the removal of material being punched and minimizes deformation of material from the punch station.
      View
      optional
      Channel Shear
      Shears channel iron distortion free from 2" to 6" (Adjustable)
      View
      optional
      12" Brake
      Bend and shape metal up to 12 inches wide. Comes standard with 2" Lower V-dies. *Brake table & back gauge sold separately.
      View
      optional
      Laser Light - Bar Shear
      Easily see the cut mark & Increases precision at the bar shear.
      View
      optional
      48" Back Gauge
      Make consistent & repeatable cuts an the bar shear using a Back Gauge tool.  (Available in Manual or Electric versions)
      View
      optional
      90° V-Notcher
      Can cut 6" x 6" V-notch in 5/16" thick material. For punch station or tool table work station.
      View
      optional
      Rectangle Notcher
      Convert the punch station into a rectangle notcher - 2" x 2-1/2" x 3/8" capacity
      View
      optional
      Angle Shear Miter Guide
      45-degree & 22-degree miter guide for angle iron shear.
      View
      optional
      Open End Brake
      Max 1/4" x 5" Flat or Angle Iron *use on punch station only.
      View
      optional
      Economy Punch & Die Package
      12 Round Punch & Die Sets - Style #40 & #82 (available in 16th, 32nd OR metric sizes)
      View
      optional
      Deluxe Punch & Die Package
      Punch & Die Variety Package - Style #40 & #82. Includes: Round, Square & Oval sets.
      View
      optional
      24" Brake
      Bend and shape metal up to 24 inches wide. Comes standard with 2" Lower V-dies. *Brake table & back gauge sold separately.
      View
      optional
      Square Tube Shear
      Can shear 1/2" to 2" square tube, up to 14 gauge.
      View
      optional
      Brake Length Gauge with Scale
      Brake Length Gauge with Scale attaches to an 8", 12", or 24" Brake.
      View
      optional
      LED Lights
      Now a standard feature! Our LED Work Lights are installed on the punch & shear stations to make sure you can always see what you are working on.
      View
      DO70
      optional
      Rod Shear
      This tool has 9 cavities for round rod: 1/4" to 1-1/4", and 1 cavity for square rod: 1/4" to 1""
      View
      optional
      Pipe Notcher
      Produce the perfect gap-free notch in seconds. Tool can be used in both the tool table or punch station on most models. Requires Schedule 40 pipe notcher die sets. Available standard sizes: 3/4", 1", 1-1/4", 1-1/2" or 2"
      View
      optional
      Picket Tool
      The picket punch tool is used to make pickets in ornamental iron. It flattens & trims ½”, ¾” or 1” thin gauge, hallow wall, square tubing. Separate dies needed for each size.
      View
      optional
      Unistrut Shear
      Tool will shear Unistrut without distortion
      View
      optional
      Weld Coupon Bender
      This tool is designed to bend welded coupons to show a welding instructor and student if there are weak points in the weld.
      View
      optional
      Tool Table Extension With Punch & Die Storage Drawer
      Store your frequently tools here with quick sliding access to the tool table work station. *Punches & Dies sold separately.
      View
      optional
      Punch Table Extension
      Increase the work area on the punch station with this extension table.
      View
      optional
      Custom Built Tool examples
      Examples of applications that our custom tooling department can build. Contact us to design custom tools built to your unique specifications.
      View
      optional
      24" x 5' Conveyor with Angle Iron Support
      24" x 5' Conveyor with Angle Iron Support attached to DO70
      View
      optional
      Multi-Loc Punch Gauging Table
      Multi-Loc Punch Gauging Table comes in two sizes:36" & 85" Extensions. This unique measuring system allows you to set metal stops at various lengths to enable the maximization of raw stock without changing the set-up each time.
      View
      optional
      Brake Table with Scale & Squaring Arm
      Increase precision & accuracy while using the brake with this option. Length Gauge w/Scale is sold separately. (For 12" & 24” brakes)
      View
      optional
      Unequal Leg Angle Shear Blades
      Unequal Leg Blades for your angle shear. Available in 66°, 70°, 74° or 80°.
      View
      optional
      Offset Die Holder
      Offset Die Holder allows for punching in the flange of channel or I-beam. (Stripper required for 6509 & 9012 models)
      View
      optional
      Urethane Stripper
      Aids in the removal of material being punched and minimizes deformation of material from the punch station.
      View
      optional
      Channel Shear
      Shears channel iron distortion free from 2" to 6" (Adjustable)
      View
      optional
      12" Brake
      Bend and shape metal up to 12 inches wide. Comes standard with 2" Lower V-dies. *Brake table & back gauge sold separately.
      View
      optional
      Laser Light - Bar Shear
      Easily see the cut mark & Increases precision at the bar shear.
      View
      optional
      48" Back Gauge
      Make consistent & repeatable cuts an the bar shear using a Back Gauge tool.  (Available in Manual or Electric versions)
      View
      optional
      90° V-Notcher
      Can cut 6" x 6" V-notch in 5/16" thick material. For punch station or tool table work station.
      View
      optional
      Angle Shear Miter Guide
      45-degree & 22-degree miter guide for angle iron shear.
      View
      optional
      Open End Brake
      Max 1/4" x 5" Flat or Angle Iron *use on punch station only.
      View
      optional
      Economy Punch & Die Package
      12 Round Punch & Die Sets - Style #40 & #82 (available in 16th, 32nd OR metric sizes)
      View
      optional
      Deluxe Punch & Die Package
      Punch & Die Variety Package - Style #40 & #82. Includes: Round, Square & Oval sets.
      View
      optional
      24" Brake
      Bend and shape metal up to 24 inches wide. Comes standard with 2" Lower V-dies. *Brake table & back gauge sold separately.
      View
      optional
      Square Tube Shear
      Can shear 1/2" to 2" square tube, up to 14 gauge.
      View
      optional
      Brake Length Gauge with Scale
      Brake Length Gauge with Scale attaches to an 8", 12", or 24" Brake.
      View
      FI85
      optional
      Pipe Notcher
      Produce the perfect gap-free notch in seconds. Tool can be used in both the tool table or punch station on most models. Requires Schedule 40 pipe notcher die sets. Available standard sizes: 3/4", 1", 1-1/4", 1-1/2" or 2"
      View
      optional
      Picket Tool
      The picket punch tool is used to make pickets in ornamental iron. It flattens & trims ½”, ¾” or 1” thin gauge, hallow wall, square tubing. Separate dies needed for each size.
      View
      optional
      Unistrut Shear
      Tool will shear Unistrut without distortion
      View
      optional
      Weld Coupon Bender
      This tool is designed to bend welded coupons to show a welding instructor and student if there are weak points in the weld.
      View
      optional
      Punch Table Extension
      Increase the work area on the punch station with this extension table.
      View
      optional
      Custom Built Tool examples
      Examples of applications that our custom tooling department can build. Contact us to design custom tools built to your unique specifications.
      View
      optional
      24" x 5' Roller Conveyor with Angle Iron Support
      24" x 5' Roller Conveyor with Angle Iron Support attached to FI8510/20M
      View
      optional
      Multi-Loc Punch Gauging Table
      Multi-Loc Punch Gauging Table comes in two sizes:36" & 85" Extensions. This unique measuring system allows you to set metal stops at various lengths to enable the maximization of raw stock without changing the set-up each time.
      View
      optional
      Brake Table with Scale & Squaring Arm
      Increase precision & accuracy while using the brake with this option. Length Gauge w/Scale is sold separately. (For 12" & 24” brakes)
      View
      optional
      Hydraulic Hold Down
      Hydraulic hold down for flat bar shear
      View
      optional
      Offset Die Holder
      Offset Die Holder allows for punching in the flange of channel or I-beam. (Stripper required for 6509 & 9012 models)
      View
      optional
      Urethane Stripper
      Aids in the removal of material being punched and minimizes deformation of material from the punch station.
      View
      optional
      Channel Shear
      Shears channel iron distortion free from 2" to 6" (Adjustable)
      View
      optional
      12" Brake
      Bend and shape metal up to 12 inches wide. Comes standard with 2" Lower V-dies. *Brake table & back gauge sold separately.
      View
      optional
      Laser Light - Bar Shear
      Easily see the cut mark & Increases precision at the bar shear.
      View
      optional
      48" Back Gauge
      Make consistent & repeatable cuts an the bar shear using a Back Gauge tool.  (Available in Manual or Electric versions)
      View
      optional
      90° V-Notcher
      Convert the punch station into a 90° V-Notcher. 6" x 6" x 5/16" capacity in punch station.
      View
      optional
      Open End Brake
      Max 1/4" x 5" Flat or Angle Iron *use on punch station only.
      View
      optional
      Economy Punch & Die Package
      12 Round Punch & Die Sets - Style #40 & #82 (available in 16th, 32nd OR metric sizes)
      View
      optional
      Deluxe Punch & Die Package
      Punch & Die Variety Package - Style #40 & #82. Includes: Round, Square & Oval sets.
      View
      optional
      24" Brake
      Bend and shape metal up to 24 inches wide. Comes standard with 2" Lower V-dies. *Brake table & back gauge sold separately.
      View
      optional
      Square Tube Shear
      Can shear 1/2" to 2" square tube, up to 14 gauge.
      View
      DO85
      optional
      Pipe Notcher
      Produce the perfect gap-free notch in seconds. Tool can be used in both the tool table or punch station on most models. Requires Schedule 40 pipe notcher die sets. Available standard sizes: 3/4", 1", 1-1/4", 1-1/2" or 2"
      View
      optional
      Picket Tool
      The picket punch tool is used to make pickets in ornamental iron. It flattens & trims ½”, ¾” or 1” thin gauge, hallow wall, square tubing. Separate dies needed for each size.
      View
      optional
      Unistrut Shear
      Tool will shear Unistrut without distortion
      View
      optional
      Weld Coupon Bender
      This tool is designed to bend welded coupons to show a welding instructor and student if there are weak points in the weld.
      View
      optional
      Punch Table Extension
      Increase the work area on the punch station with this extension table.
      View
      optional
      Custom Built Tool examples
      Examples of applications that our custom tooling department can build. Contact us to design custom tools built to your unique specifications.
      View
      optional
      24" x 5' Roller Conveyor with Angle Iron Support
      24" x 5' Roller Conveyor with Angle Iron Support attached to FI8510/20M
      View
      optional
      Open End Brake For Notcher Station
      Convert the built-in notcher station into an open end brake.
      View
      optional
      Multi-Loc Punch Gauging Table
      Multi-Loc Punch Gauging Table comes in two sizes:36" & 85" Extensions. This unique measuring system allows you to set metal stops at various lengths to enable the maximization of raw stock without changing the set-up each time.
      View
      optional
      Optional Punch for Notcher Station
      Convert the DO85 notcher station into a second punching station.
      View
      optional
      Brake Table with Scale & Squaring Arm
      Increase precision & accuracy while using the brake with this option. Length Gauge w/Scale is sold separately. (For 12" & 24” brakes)
      View
      optional
      Offset Die Holder
      Offset Die Holder allows for punching in the flange of channel or I-beam. (Stripper required for 6509 & 9012 models)
      View
      optional
      Urethane Stripper
      Aids in the removal of material being punched and minimizes deformation of material from the punch station.
      View
      optional
      Channel Shear Blades
      2", 3", 4", 5" & 6" blades available
      View
      optional
      12" Brake
      Bend and shape metal up to 12 inches wide. Comes standard with 2" Lower V-dies. *Brake table & back gauge sold separately.
      View
      optional
      48" Back Gauge
      Make consistent & repeatable cuts an the bar shear using a Back Gauge tool.  (Available in Manual or Electric versions)
      View
      optional
      90° V-Notcher
      Convert the built-in square notcher station into a 90° V-Notcher = 3" x 3" x 1/2" capacity. Use in Vee Notcher in the punch station = 6" x 6" x 5/16" capacity.
      View
      optional
      Open End Brake
      Max 1/4" x 5" Flat or Angle Iron *use on punch station only.
      View
      optional
      Economy Punch & Die Package
      12 Round Punch & Die Sets - Style #40 & #82 (available in 16th, 32nd OR metric sizes)
      View
      optional
      Deluxe Punch & Die Package
      Punch & Die Variety Package - Style #40 & #82. Includes: Round, Square & Oval sets.
      View
      optional
      24" Brake
      Bend and shape metal up to 24 inches wide. Comes standard with 2" Lower V-dies. *Brake table & back gauge sold separately.
      View
      optional
      Square Tube Shear
      Can shear 1/2" to 2" square tube, up to 14 gauge.
      View
      9012
      optional
      Rod Shear
      This tool has 9 cavities for round rod: 1/4" to 1-1/4", and 1 cavity for square rod: 1/4" to 1""
      View
      optional
      Pipe Notcher
      Produce the perfect gap-free notch in seconds. Tool can be used in both the tool table or punch station on most models. Requires Schedule 40 pipe notcher die sets. Available standard sizes: 3/4", 1", 1-1/4", 1-1/2" or 2"
      View
      optional
      Picket Tool
      The picket punch tool is used to make pickets in ornamental iron. It flattens & trims ½”, ¾” or 1” thin gauge, hallow wall, square tubing. Separate dies needed for each size.
      View
      optional
      Unistrut Shear
      Tool will shear Unistrut without distortion
      View
      optional
      Weld Coupon Bender
      This tool is designed to bend welded coupons to show a welding instructor and student if there are weak points in the weld.
      View
      optional
      Tool Table Extension With Punch & Die Storage Drawer
      Store your frequently tools here with quick sliding access to the tool table work station. *Punches & Dies sold separately.
      View
      optional
      Punch Table Extension
      Increase the work area on the punch station with this extension table.
      View
      optional
      Custom Built Tool examples
      Examples of applications that our custom tooling department can build. Contact us to design custom tools built to your unique specifications.
      View
      optional
      24" x 5' Conveyor with Angle Iron Support
      24" x 5' Conveyor with Angle Iron Support attached to DO70
      View
      optional
      Multi-Loc Punch Gauging Table
      Multi-Loc Punch Gauging Table comes in two sizes:36" & 85" Extensions. This unique measuring system allows you to set metal stops at various lengths to enable the maximization of raw stock without changing the set-up each time.
      View
      optional
      Brake Table with Scale & Squaring Arm
      Increase precision & accuracy while using the brake with this option. Length Gauge w/Scale is sold separately. (For 12" & 24” brakes)
      View
      optional
      Hydraulic Hold Down
      Hydraulic hold down for flat bar shear
      View
      optional
      Unequal Leg Angle Shear Blades
      Unequal Leg Blades for your angle shear. Available in 66°, 70°, 74° or 80°.
      View
      optional
      Offset Die Holder
      Offset Die Holder allows for punching in the flange of channel or I-beam. (Stripper required for 6509 & 9012 models)
      View
      optional
      Urethane Stripper
      Aids in the removal of material being punched and minimizes deformation of material from the punch station.
      View
      optional
      Channel Shear
      Shears channel iron distortion free from 2" to 6" (Adjustable)
      View
      optional
      12" Brake
      Bend and shape metal up to 12 inches wide. Comes standard with 2" Lower V-dies. *Brake table & back gauge sold separately.
      View
      optional
      Laser Light - Bar Shear
      Easily see the cut mark & Increases precision at the bar shear.
      View
      optional
      48" Back Gauge
      Make consistent & repeatable cuts an the bar shear using a Back Gauge tool.  (Available in Manual or Electric versions)
      View
      optional
      90° V-Notcher
      Can cut 6" x 6" V-notch in 5/16" thick material. For punch station or tool table work station.
      View
      optional
      Rectangle Notcher
      Convert the punch station into a rectangle notcher - 2" x 2-1/2" x 3/8" capacity
      View
      optional
      Angle Shear Miter Guide
      45-degree & 22-degree miter guide for angle iron shear.
      View
      optional
      Open End Brake
      Max 1/4" x 5" Flat or Angle Iron *use on punch station only.
      View
      optional
      Economy Punch & Die Package
      12 Round Punch & Die Sets - Style #40 & #82 (available in 16th, 32nd OR metric sizes)
      View
      optional
      Deluxe Punch & Die Package
      Punch & Die Variety Package - Style #40 & #82. Includes: Round, Square & Oval sets.
      View
      optional
      24" Brake
      Bend and shape metal up to 24 inches wide. Comes standard with 2" Lower V-dies. *Brake table & back gauge sold separately.
      View
      optional
      Square Tube Shear
      Can shear 1/2" to 2" square tube, up to 14 gauge.
      View
      optional
      Brake Length Gauge with Scale
      Brake Length Gauge with Scale attaches to an 8", 12", or 24" Brake.
      View
      DO95
      optional
      Rod Shear
      This tool has 9 cavities for round rod: 1/4" to 1-1/4", and 1 cavity for square rod: 1/4" to 1""
      View
      optional
      Pipe Notcher
      Produce the perfect gap-free notch in seconds. Tool can be used in both the tool table or punch station on most models. Requires Schedule 40 pipe notcher die sets. Available standard sizes: 3/4", 1", 1-1/4", 1-1/2" or 2"
      View
      optional
      Picket Tool
      The picket punch tool is used to make pickets in ornamental iron. It flattens & trims ½”, ¾” or 1” thin gauge, hallow wall, square tubing. Separate dies needed for each size.
      View
      optional
      Unistrut Shear
      Tool will shear Unistrut without distortion
      View
      optional
      Weld Coupon Bender
      This tool is designed to bend welded coupons to show a welding instructor and student if there are weak points in the weld.
      View
      optional
      Tool Table Extension With Punch & Die Storage Drawer
      Store your frequently tools here with quick sliding access to the tool table work station. *Punches & Dies sold separately.
      View
      optional
      Punch Table Extension
      Increase the work area on the punch station with this extension table.
      View
      optional
      Custom Built Tool examples
      Examples of applications that our custom tooling department can build. Contact us to design custom tools built to your unique specifications.
      View
      optional
      24" x 5' Conveyor with Angle Iron Support
      24" x 5' Conveyor with Angle Iron Support attached to DO70
      View
      optional
      Multi-Loc Punch Gauging Table
      Multi-Loc Punch Gauging Table comes in two sizes:36" & 85" Extensions. This unique measuring system allows you to set metal stops at various lengths to enable the maximization of raw stock without changing the set-up each time.
      View
      optional
      Brake Table with Scale & Squaring Arm
      Increase precision & accuracy while using the brake with this option. Length Gauge w/Scale is sold separately. (For 12" & 24” brakes)
      View
      optional
      Unequal Leg Angle Shear Blades
      Unequal Leg Blades for your angle shear. Available in 66°, 70°, 74° or 80°.
      View
      optional
      Offset Die Holder
      Offset Die Holder allows for punching in the flange of channel or I-beam. (Stripper required for 6509 & 9012 models)
      View
      optional
      Urethane Stripper
      Aids in the removal of material being punched and minimizes deformation of material from the punch station.
      View
      optional
      Channel Shear
      Shears channel iron distortion free from 2" to 6" (Adjustable)
      View
      optional
      12" Brake
      Bend and shape metal up to 12 inches wide. Comes standard with 2" Lower V-dies. *Brake table & back gauge sold separately.
      View
      optional
      Laser Light - Bar Shear
      Easily see the cut mark & Increases precision at the bar shear.
      View
      optional
      48" Back Gauge
      Make consistent & repeatable cuts an the bar shear using a Back Gauge tool.  (Available in Manual or Electric versions)
      View
      optional
      90° V-Notcher
      Can cut 6" x 6" V-notch in 5/16" thick material. For punch station or tool table work station.
      View
      optional
      Angle Shear Miter Guide
      45-degree & 22-degree miter guide for angle iron shear.
      View
      optional
      Open End Brake
      Max 1/4" x 5" Flat or Angle Iron *use on punch station only.
      View
      optional
      Economy Punch & Die Package
      12 Round Punch & Die Sets - Style #40 & #82 (available in 16th, 32nd OR metric sizes)
      View
      optional
      Deluxe Punch & Die Package
      Punch & Die Variety Package - Style #40 & #82. Includes: Round, Square & Oval sets.
      View
      optional
      24" Brake
      Bend and shape metal up to 24 inches wide. Comes standard with 2" Lower V-dies. *Brake table & back gauge sold separately.
      View
      optional
      Square Tube Shear
      Can shear 1/2" to 2" square tube, up to 14 gauge.
      View
      optional
      Brake Length Gauge with Scale
      Brake Length Gauge with Scale attaches to an 8", 12", or 24" Brake.
      View
      12012
      optional
      Rod Shear
      This tool has 9 cavities for round rod: 1/4" to 1-1/4", and 1 cavity for square rod: 1/4" to 1""
      View
      optional
      Pipe Notcher
      Produce the perfect gap-free notch in seconds. Tool can be used in both the tool table or punch station on most models. Requires Schedule 40 pipe notcher die sets. Available standard sizes: 3/4", 1", 1-1/4", 1-1/2" or 2"
      View
      optional
      Picket Tool
      The picket punch tool is used to make pickets in ornamental iron. It flattens & trims ½”, ¾” or 1” thin gauge, hallow wall, square tubing. Separate dies needed for each size.
      View
      optional
      Unistrut Shear
      Tool will shear Unistrut without distortion
      View
      optional
      Weld Coupon Bender
      This tool is designed to bend welded coupons to show a welding instructor and student if there are weak points in the weld.
      View
      optional
      Tool Table Extension With Punch & Die Storage Drawer
      Store your frequently tools here with quick sliding access to the tool table work station. *Punches & Dies sold separately.
      View
      optional
      Punch Table Extension
      Increase the work area on the punch station with this extension table.
      View
      optional
      Custom Built Tool examples
      Examples of applications that our custom tooling department can build. Contact us to design custom tools built to your unique specifications.
      View
      optional
      24" x 5' Conveyor with Angle Iron Support
      24" x 5' Conveyor with Angle Iron Support attached to DO70
      View
      optional
      Multi-Loc Punch Gauging Table
      Multi-Loc Punch Gauging Table comes in two sizes:36" & 85" Extensions. This unique measuring system allows you to set metal stops at various lengths to enable the maximization of raw stock without changing the set-up each time.
      View
      optional
      Brake Table with Scale & Squaring Arm
      Increase precision & accuracy while using the brake with this option. Length Gauge w/Scale is sold separately. (For 12" & 24” brakes)
      View
      optional
      Hydraulic Hold Down
      Hydraulic hold down for flat bar shear
      View
      optional
      Unequal Leg Angle Shear Blades
      Unequal Leg Blades for your angle shear. Available in 66°, 70°, 74° or 80°.
      View
      optional
      Offset Die Holder
      Offset Die Holder allows for punching in the flange of channel or I-beam. (Stripper required for 6509 & 9012 models)
      View
      optional
      Urethane Stripper
      Aids in the removal of material being punched and minimizes deformation of material from the punch station.
      View
      optional
      Channel Shear
      Shears channel iron distortion free from 2" to 6" (Adjustable)
      View
      optional
      12" Brake
      Bend and shape metal up to 12 inches wide. Comes standard with 2" Lower V-dies. *Brake table & back gauge sold separately.
      View
      optional
      Laser Light - Bar Shear
      Easily see the cut mark & Increases precision at the bar shear.
      View
      optional
      48" Back Gauge
      Make consistent & repeatable cuts an the bar shear using a Back Gauge tool.  (Available in Manual or Electric versions)
      View
      optional
      90° V-Notcher
      Can cut 6" x 6" V-notch in 5/16" thick material. For punch station or tool table work station.
      View
      optional
      Rectangle Notcher
      Convert the punch station into a rectangle notcher - 2" x 2-1/2" x 3/8" capacity
      View
      optional
      Angle Shear Miter Guide
      45-degree & 22-degree miter guide for angle iron shear.
      View
      optional
      Open End Brake
      Max 1/4" x 5" Flat or Angle Iron *use on punch station only.
      View
      optional
      Economy Punch & Die Package
      12 Round Punch & Die Sets - Style #40 & #82 (available in 16th, 32nd OR metric sizes)
      View
      optional
      Deluxe Punch & Die Package
      Punch & Die Variety Package - Style #40 & #82. Includes: Round, Square & Oval sets.
      View
      optional
      24" Brake
      Bend and shape metal up to 24 inches wide. Comes standard with 2" Lower V-dies. *Brake table & back gauge sold separately.
      View
      optional
      Square Tube Shear
      Can shear 1/2" to 2" square tube, up to 14 gauge.
      View
      optional
      Brake Length Gauge with Scale
      Brake Length Gauge with Scale attaches to an 8", 12", or 24" Brake.
      View
      DO120
      optional
      Rod Shear
      This tool has 9 cavities for round rod: 1/4" to 1-1/4", and 1 cavity for square rod: 1/4" to 1""
      View
      optional
      Pipe Notcher
      Produce the perfect gap-free notch in seconds. Tool can be used in both the tool table or punch station on most models. Requires Schedule 40 pipe notcher die sets. Available standard sizes: 3/4", 1", 1-1/4", 1-1/2" or 2"
      View
      optional
      Picket Tool
      The picket punch tool is used to make pickets in ornamental iron. It flattens & trims ½”, ¾” or 1” thin gauge, hallow wall, square tubing. Separate dies needed for each size.
      View
      optional
      Unistrut Shear
      Tool will shear Unistrut without distortion
      View
      optional
      Weld Coupon Bender
      This tool is designed to bend welded coupons to show a welding instructor and student if there are weak points in the weld.
      View
      optional
      Tool Table Extension With Punch & Die Storage Drawer
      Store your frequently tools here with quick sliding access to the tool table work station. *Punches & Dies sold separately.
      View
      optional
      Punch Table Extension
      Increase the work area on the punch station with this extension table.
      View
      optional
      Custom Built Tool examples
      Examples of applications that our custom tooling department can build. Contact us to design custom tools built to your unique specifications.
      View
      optional
      24" x 5' Conveyor with Angle Iron Support
      24" x 5' Conveyor with Angle Iron Support attached to DO70
      View
      optional
      Multi-Loc Punch Gauging Table
      Multi-Loc Punch Gauging Table comes in two sizes:36" & 85" Extensions. This unique measuring system allows you to set metal stops at various lengths to enable the maximization of raw stock without changing the set-up each time.
      View
      optional
      Brake Table with Scale & Squaring Arm
      Increase precision & accuracy while using the brake with this option. Length Gauge w/Scale is sold separately. (For 12" & 24” brakes)
      View
      optional
      Hydraulic Hold Down
      Hydraulic hold down for flat bar shear
      View
      optional
      Unequal Leg Angle Shear Blades
      Unequal Leg Blades for your angle shear. Available in 66°, 70°, 74° or 80°.
      View
      optional
      Offset Die Holder
      Offset Die Holder allows for punching in the flange of channel or I-beam. (Stripper required for 6509 & 9012 models)
      View
      optional
      Urethane Stripper
      Aids in the removal of material being punched and minimizes deformation of material from the punch station.
      View
      optional
      Channel Shear
      Shears channel iron distortion free from 2" to 6" (Adjustable)
      View
      optional
      12" Brake
      Bend and shape metal up to 12 inches wide. Comes standard with 2" Lower V-dies. *Brake table & back gauge sold separately.
      View
      optional
      Laser Light - Bar Shear
      Easily see the cut mark & Increases precision at the bar shear.
      View
      optional
      48" Back Gauge
      Make consistent & repeatable cuts an the bar shear using a Back Gauge tool.  (Available in Manual or Electric versions)
      View
      optional
      90° V-Notcher
      Can cut 6" x 6" V-notch in 5/16" thick material. For punch station or tool table work station.
      View
      optional
      Angle Shear Miter Guide
      45-degree & 22-degree miter guide for angle iron shear.
      View
      optional
      Open End Brake
      Max 1/4" x 5" Flat or Angle Iron *use on punch station only.
      View
      optional
      Economy Punch & Die Package
      12 Round Punch & Die Sets - Style #40 & #82 (available in 16th, 32nd OR metric sizes)
      View
      optional
      Deluxe Punch & Die Package
      Punch & Die Variety Package - Style #40 & #82. Includes: Round, Square & Oval sets.
      View
      optional
      24" Brake
      Bend and shape metal up to 24 inches wide. Comes standard with 2" Lower V-dies. *Brake table & back gauge sold separately.
      View
      optional
      Square Tube Shear
      Can shear 1/2" to 2" square tube, up to 14 gauge.
      View
      optional
      Brake Length Gauge with Scale
      Brake Length Gauge with Scale attaches to an 8", 12", or 24" Brake.
      View
      DO135
      optional
      Rod Shear
      This tool has 9 cavities for round rod: 1/4" to 1-1/4", and 1 cavity for square rod: 1/4" to 1""
      View
      optional
      Pipe Notcher
      Produce the perfect gap-free notch in seconds. Tool can be used in both the tool table or punch station on most models. Requires Schedule 40 pipe notcher die sets. Available standard sizes: 3/4", 1", 1-1/4", 1-1/2" or 2"
      View
      optional
      Picket Tool
      The picket punch tool is used to make pickets in ornamental iron. It flattens & trims ½”, ¾” or 1” thin gauge, hallow wall, square tubing. Separate dies needed for each size.
      View
      optional
      Unistrut Shear
      Tool will shear Unistrut without distortion
      View
      optional
      Weld Coupon Bender
      This tool is designed to bend welded coupons to show a welding instructor and student if there are weak points in the weld.
      View
      optional
      Tool Table Extension With Punch & Die Storage Drawer
      Store your frequently tools here with quick sliding access to the tool table work station. *Punches & Dies sold separately.
      View
      optional
      Punch Table Extension
      Increase the work area on the punch station with this extension table.
      View
      optional
      Custom Built Tool examples
      Examples of applications that our custom tooling department can build. Contact us to design custom tools built to your unique specifications.
      View
      optional
      24" x 5' Conveyor with Angle Iron Support
      24" x 5' Conveyor with Angle Iron Support attached to DO70
      View
      optional
      Multi-Loc Punch Gauging Table
      Multi-Loc Punch Gauging Table comes in two sizes:36" & 85" Extensions. This unique measuring system allows you to set metal stops at various lengths to enable the maximization of raw stock without changing the set-up each time.
      View
      optional
      Brake Table with Scale & Squaring Arm
      Increase precision & accuracy while using the brake with this option. Length Gauge w/Scale is sold separately. (For 12" & 24” brakes)
      View
      optional
      Hydraulic Hold Down
      Hydraulic hold down for flat bar shear
      View
      optional
      Unequal Leg Angle Shear Blades
      Unequal Leg Blades for your angle shear. Available in 66°, 70°, 74° or 80°.
      View
      optional
      Offset Die Holder
      Offset Die Holder allows for punching in the flange of channel or I-beam. (Stripper required for 6509 & 9012 models)
      View
      optional
      Urethane Stripper
      Aids in the removal of material being punched and minimizes deformation of material from the punch station.
      View
      optional
      Channel Shear
      Shears channel iron distortion free from 2" to 6" (Adjustable)
      View
      optional
      12" Brake
      Bend and shape metal up to 12 inches wide. Comes standard with 2" Lower V-dies. *Brake table & back gauge sold separately.
      View
      optional
      Laser Light - Bar Shear
      Easily see the cut mark & Increases precision at the bar shear.
      View
      optional
      48" Back Gauge
      Make consistent & repeatable cuts an the bar shear using a Back Gauge tool.  (Available in Manual or Electric versions)
      View
      optional
      90° V-Notcher
      Can cut 6" x 6" V-notch in 5/16" thick material. For punch station or tool table work station.
      View
      optional
      Angle Shear Miter Guide
      45-degree & 22-degree miter guide for angle iron shear.
      View
      optional
      Open End Brake
      Max 1/4" x 5" Flat or Angle Iron *use on punch station only.
      View
      optional
      Economy Punch & Die Package
      12 Round Punch & Die Sets - Style #40 & #82 (available in 16th, 32nd OR metric sizes)
      View
      optional
      Deluxe Punch & Die Package
      Punch & Die Variety Package - Style #40 & #82. Includes: Round, Square & Oval sets.
      View
      optional
      24" Brake
      Bend and shape metal up to 24 inches wide. Comes standard with 2" Lower V-dies. *Brake table & back gauge sold separately.
      View
      optional
      Square Tube Shear
      Can shear 1/2" to 2" square tube, up to 14 gauge.
      View
      optional
      Brake Length Gauge with Scale
      Brake Length Gauge with Scale attaches to an 8", 12", or 24" Brake.
      View
      DO150
      optional
      Rod Shear
      This tool has 9 cavities for round rod: 1/4" to 1-1/4", and 1 cavity for square rod: 1/4" to 1""
      View
      optional
      Pipe Notcher
      Produce the perfect gap-free notch in seconds. Tool can be used in both the tool table or punch station on most models. Requires Schedule 40 pipe notcher die sets. Available standard sizes: 3/4", 1", 1-1/4", 1-1/2" or 2"
      View
      optional
      Picket Tool
      The picket punch tool is used to make pickets in ornamental iron. It flattens & trims ½”, ¾” or 1” thin gauge, hallow wall, square tubing. Separate dies needed for each size.
      View
      optional
      Unistrut Shear
      Tool will shear Unistrut without distortion
      View
      optional
      Weld Coupon Bender
      This tool is designed to bend welded coupons to show a welding instructor and student if there are weak points in the weld.
      View
      optional
      Tool Table Extension With Punch & Die Storage Drawer
      Store your frequently tools here with quick sliding access to the tool table work station. *Punches & Dies sold separately.
      View
      optional
      Punch Table Extension
      Increase the work area on the punch station with this extension table.
      View
      optional
      Custom Built Tool examples
      Examples of applications that our custom tooling department can build. Contact us to design custom tools built to your unique specifications.
      View
      optional
      24" x 5' Conveyor with Angle Iron Support
      24" x 5' Conveyor with Angle Iron Support attached to DO70
      View
      optional
      Multi-Loc Punch Gauging Table
      Multi-Loc Punch Gauging Table comes in two sizes:36" & 85" Extensions. This unique measuring system allows you to set metal stops at various lengths to enable the maximization of raw stock without changing the set-up each time.
      View
      optional
      Brake Table with Scale & Squaring Arm
      Increase precision & accuracy while using the brake with this option. Length Gauge w/Scale is sold separately. (For 12" & 24” brakes)
      View
      optional
      Hydraulic Hold Down
      Hydraulic hold down for flat bar shear
      View
      optional
      Unequal Leg Angle Shear Blades
      Unequal Leg Blades for your angle shear. Available in 66°, 70°, 74° or 80°.
      View
      optional
      Offset Die Holder
      Offset Die Holder allows for punching in the flange of channel or I-beam. (Stripper required for 6509 & 9012 models)
      View
      optional
      Urethane Stripper
      Aids in the removal of material being punched and minimizes deformation of material from the punch station.
      View
      optional
      Channel Shear
      Shears channel iron distortion free from 2" to 6" (Adjustable)
      View
      optional
      12" Brake
      Bend and shape metal up to 12 inches wide. Comes standard with 2" Lower V-dies. *Brake table & back gauge sold separately.
      View
      optional
      Laser Light - Bar Shear
      Easily see the cut mark & Increases precision at the bar shear.
      View
      optional
      48" Back Gauge
      Make consistent & repeatable cuts an the bar shear using a Back Gauge tool.  (Available in Manual or Electric versions)
      View
      optional
      90° V-Notcher
      Can cut 6" x 6" V-notch in 5/16" thick material. For punch station or tool table work station.
      View
      optional
      Angle Shear Miter Guide
      45-degree & 22-degree miter guide for angle iron shear.
      View
      optional
      Open End Brake
      Max 1/4" x 5" Flat or Angle Iron *use on punch station only.
      View
      optional
      Economy Punch & Die Package
      12 Round Punch & Die Sets - Style #40 & #82 (available in 16th, 32nd OR metric sizes)
      View
      optional
      Deluxe Punch & Die Package
      Punch & Die Variety Package - Style #40 & #82. Includes: Round, Square & Oval sets.
      View
      optional
      24" Brake
      Bend and shape metal up to 24 inches wide. Comes standard with 2" Lower V-dies. *Brake table & back gauge sold separately.
      View
      optional
      Square Tube Shear
      Can shear 1/2" to 2" square tube, up to 14 gauge.
      View
      optional
      Brake Length Gauge with Scale
      Brake Length Gauge with Scale attaches to an 8", 12", or 24" Brake.
      View
      ShearMaster 610
      optional
      24" x 5' Roller Conveyor
      24" x 5' Roller Conveyor attached to ShearMaster 610
      View

      Custom-Built Tooling

      Custom-Tooling-examples

      Sometimes, a unique application requires a custom-built solution.

      If you need something beyond the standard tooling we offer, our team of engineers is equipped to design and build a tailored solution built to your specifications.

      From our plant in Philip, South Dakota, each step of this process from design & development to completion is done in-house. We thoroughly test each tool to verify performance and ensure value for your investment. With quality manufactured into every tool, we assure that our tools will stand up to the tough demands of your applications.


      Send us your prints and our engineers will get to work designing a custom tool for your specific needs.

      Request Custom Tooling
